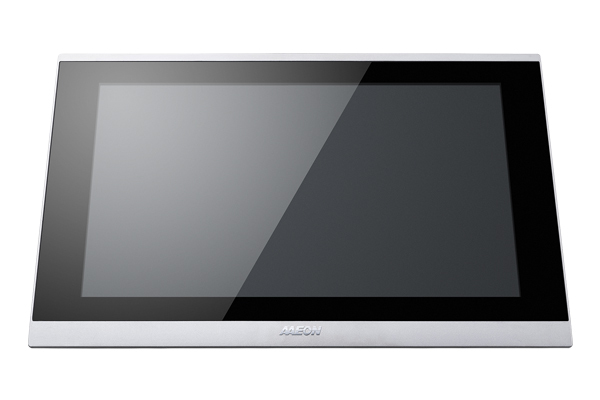

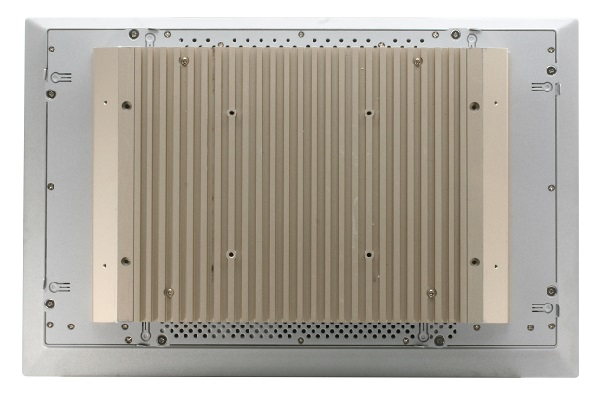

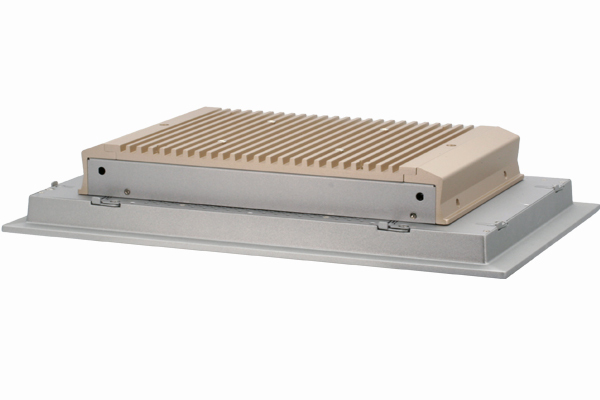

15.6” HMI Panel PC with 10th Generation Intel® Core™ / Pentium™ / Celeron® Processor
The OMNI-2155-CML powered by 10th Generation Intel® Core™ processors (formerly Comet Lake), is the first in the OMNI family of industrial touch panel PC solutions to offer a socket-type processor, allowing for easier maintenance and scalability to meet the performance needs of individual applications.
The system features an M.2 2280 (M-Key) slot driven by PCIe 3.0 [x4] with support for fast NVMe SSDs. It also delivers M.2 2230 (E-Key) to support a range of functions including Wi-Fi or Bluetooth connectivity. The OMNI-2155-CML is also built with a full-sized Mini Card slot which supports PCIe and mSATA, set via the BIOS.
Most demanding expansion interface and I / O from some USB 3.0 x 1 USB 2.0 x 3, HDMI x 1 and 9 ~ 30 V DC to three-pin terminal block x 1 power input standards also present in the device. In this way, or HMI screens are ideal for industrial applications.
The OMNI-2155-CML is built from the ground up for industrial applications. The 15.6” LCD touch screen utilizes the P-CAP system and can be configured to be operable with gloves. It also features a wide voltage input (10 to 35V) and provides consistent operation without loss of performance in temperatures from 0°C up to 45°C.
Features
• 15.6” (1366 x 768) TFT LCD Display
• Extreme Computing Power & Graphic Display Capability
• DDR4 slot x 2, up to 64GB
• Support High Speed NVMe storage (M.2 2280)
• GbE LAN x 2, RS232/422/485 x 2
• USB 3.2 Gen2 x 4
• Supports Intel® AMT
• Wide Range 10-35V DC input
Product Code | OMNI-2155HTT-CML-A2-1010 |
Screen size | 15.6" TFT LCD |
Resolution | 1366 x 768 |
Brightness | 400 CD / m² |
View angle | 160 ° (h), 140 ° (v) |
Touch type | Flat 5 Wired Resistive |
Rear Lighting Life (Minimum) | 50000 hours |
Cooling | Fan |
Processor [CPU] | Intel® Core™ 9. Gen i9 | i7 | i5 | i3 | Intel® Pentium® |
Processor [CPU] family | Intel® Core™ 9. Gen i9 | i7 | i5 | i3 | Intel® Pentium® |
RAM [System Memory] | Selectable can be upgraded to DDR4 - 64 GB. |
SSD / HDD / MSATA STORAGE | 2.5 "SATA | M.2 2280 can be configured |
LAN/Ethernet | GbE x 2 |
USB 3.2 | X 4 |
RS-232/422/485 serial port | x 2 |
Digital I / O | Optional Omnikit |
Video output | HDMI x 1 |
Expansion slot | M.2 2230 E Key X 1, M.2 2280 B Key X 1, Full-size Mini Card X 1 |
Wireless / Wireless | Optional Wi-Fi / IT |
Mounting Type | Panel Mount / VESA 75 / VESA100 / Stand |
Supply voltage | DC 9V ~ 30V |
Operating temperature | 0 ° C ~ 55 ° C |
External dimensions (mm) | 420 x 265 x 73 |
Weight (kg) | 65 |
Chassie Metarial | Aluminum |
IP Protection Class | Front IP65 |
Certifications | CE / FCC Class a |
Supported Operating Systems | Windows 10 | Linux |
