GENE-KBU6-A11-0003
Brand: AAEON [An ASUS Co.]
Categories: 3.5" SUBCmpact

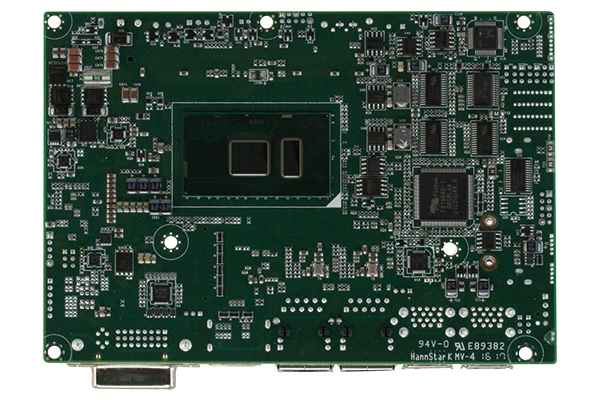

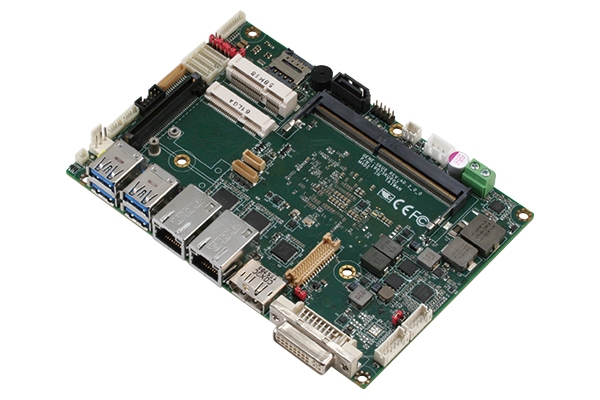

Expandable 3.5" sub-compact Motherboard with 7th Gen Intel® Core™ i7/i5/i3/Celeron® Processor SoC
All versions of GENE-kbu6 are designed with Fanless cooler, which reduces heat and facilitates air flow, ensuring product quality and lifespan. This 3.5" single board is specifically designed for applications such as Industrial Automation and Robotics.
GENE-KBU6 has created a unique BIO interface for any industrial or embedded (embedded) flexible polar expansion option that seamlessly suits rapid customization and computing application.
All versions of GENE-kbu6 are designed with Fanless cooler, which reduces heat and facilitates air flow, ensuring product quality and lifespan. This 3.5" single board is specifically designed for applications such as Industrial Automation and Robotics.
GENE-KBU6 has created a unique BIO interface for any industrial or embedded (embedded) flexible polar expansion option that seamlessly suits rapid customization and computing application.
Features
| Product Code | GENE-KBU6-A11-0003 |
| Form Factor | 3.5" SUBCmpact |
| Card Size (mm) | 101,6 x 146 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i3-7100U 2 Core 2.40 GHz BM : 2790 |
| Processor [CPU] Family | Intel® Core™ i3 7. Gen |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 4 |
| RS 232/422/485 Serial Port | x 3 |
| Digital I/O | DIO x 8 |

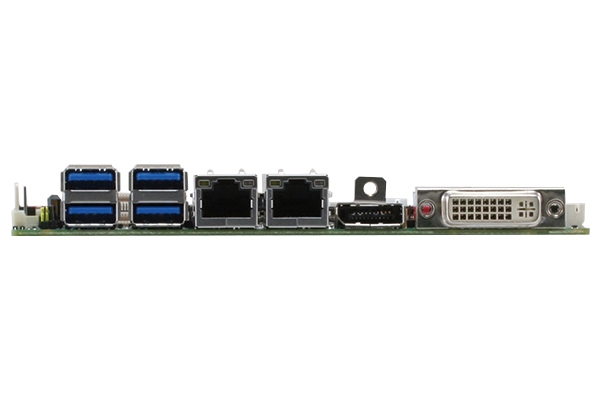

| Video Output | DVI-D x 1 + DP x 1 + LVDS x 1 |
| LVDS | 18/24 bit 2CH x 1 |
| Expansion Slot | Full Size Mini-PCIe |
| TPM | TPM 2.0 |
| Supply voltage | DC 9V - 36V |
| Certificates | CE |
| Supported Operating Systems | Windows® 10 IoT | Pro | Linux | License Not Included in the Price. |
