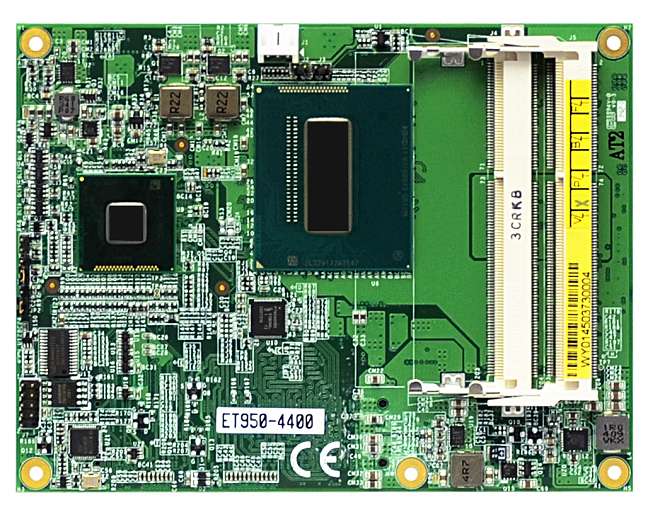

ET950-4400

Brand: IBASE
Categories: COM Express Compact Size


Features


Product Code ET950-4400
Form Factor COM Express Compact Size
Card Size (mm) 95 x 125
Processor [CPU] Intel® Core™ i5-4400E 2 Core 2.70 GHz BM : 3290
Processor [CPU] Family Intel® Core™ i5 4. Gen
RAM [System Memory] [Max 16 GB]
SSD/HDD/mSATA/M.2 SATA2 x 2 | SATA3 x 2
LAN/Ethernet GbE x 1
USB 3.0 x 4
USB 2.0 x 4
RS 232 Serial Port x 2
RS 232/422/485 Serial Port x 2
Digital I/O DI x 4 / DO x 4
Video Output LVDS x 1
LVDS 18/24 bit 2CH x 1
Expansion Slot Full Size | PCIe [x1] x 2 | PCIe [x4] x 1 | PCIe [x16] x 1 | PCIe [x1] x 2 | PCIe [x4] x 1 | PCIe [x16] x 1
Certificates CE
