BOXER-6642-CML-A1-1010

Brand: AAEON [An ASUS Co.]
Categories: Automation Box PC

Fanless Embedded Box PC with Socket Type 10th Generation Intel® Core™ Processor

The BOXER-6642-CML is the first fanless industrial PC from AAEON to offer the 10th Generation Intel Core i3/i5/i7/i9 and Intel® Celeron® processors (up to 35W TDP). Utilizing a socket-type desktop chipset, the system can be easily scaled or upgraded to match the performance needs of any application. Additionally, its slim design, only 54mm thick, allows it to fit into almost any tight space, allowing it to be deployed right where it needs to be.

The BOXER-6642-CML features an M.2 2280 (M-Key) slot driven by PCIe 3.0 [x4] with support for fast NVMe SSDs. It also has an M.2 2230 (E-Key) slot to support Wi-Fi or Bluetooth connectivity. The BOXER-6642-CML is built with a full-sized Mini Card slot which supports PCIe and mSATA, set via the BIOS.

The BOXER-6642-CML features fanless design which keeps dust and other contaminants out, allowing reliable, long-lasting operation. It also features a wide voltage input (10 to 35V) and provides consistent operation without loss of performance in temperatures from 0°C up to 45°C.

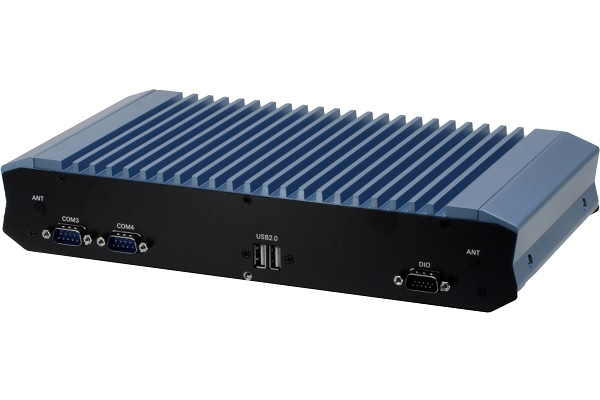

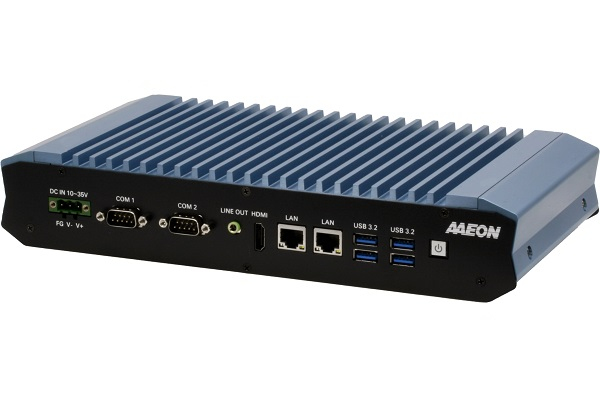

The BOXER-6642-CML offers a broad range of I/O features including four serial COM ports, four USB3.2 Gen 2 ports, and two Gigabit Ethernet ports, providing support for Intel® vPro and Intel® AMT. The BOXER-6642-CML also delivers storage flexibility with NVMe support, mSATA, and 2.5” SATA III (6.0 Gbps) storage devices. The BOXER-6642-CML can also easily connect with cellular networks thanks to onboard SIM card slot, allowing for even more communication flexibility.

Features

• Extreme Computing Power & Graphic Display Capability

• DDR4 slot x 2, up to 64GB

• Support High Speed NVMe storage (M.2 2280)

• GbE LAN x 2, RS232/422/485 x 4

• Supports Intel® AMT

• Support TPM 2.0

• Wide Range 10-35V DC input

• Wide Range 0 ~ 45°C Operating Temperature


Features


Product Code BOXER-6642-CML-A1-1010
Cooling Fanless
Processor [CPU] Intel® Core™ 9. Gen i9 | i7 | i5 | i3 | Intel® Pentium®
Processor [CPU] family Intel® Core™ 9. Gen i9 | i7 | i5 | i3 | Intel® Pentium®
RAM [System Memory] Selectable can be upgraded to DDR4 - 64GB.
SSD / HDD / MSATA STORAGE 2.5 "SATA | M.2 2280 can be configured
LAN/Ethernet GbE x 2
USB 3.2 X 4
RS-232/422/485 serial port x 2
Digital I / O Optional Omnikit
Video output HDMI x 1
Expansion slot M.2 2230 E Key X 1, M.2 2280 B Key X 1, Full-size Mini Card X 1
Wireless / Wireless Optional Wi-Fi / IT
Mounting Type Wallmount
Supply voltage DC 9V ~ 36V
Operating temperature -20 ° C ~ 55 ° C
External dimensions (mm) 292 x 152 x 53.5
Weight (kg) 3.8
Chassie Metarial Aluminum
Certifications CE / FCC
Supported Operating Systems Windows 10 | Linux
