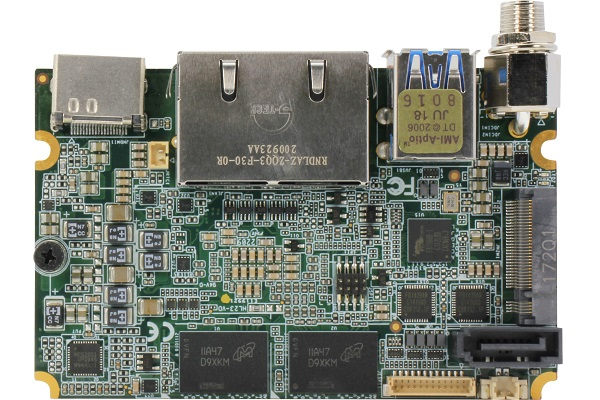

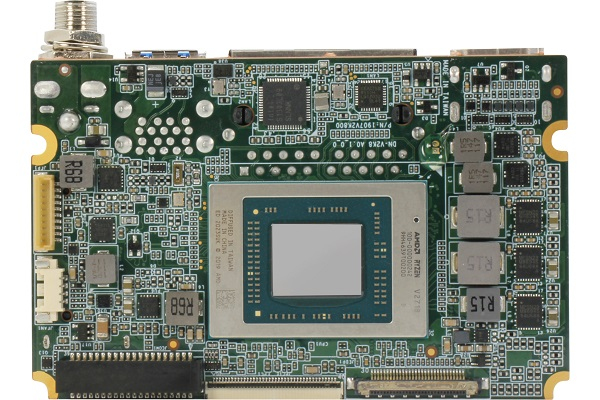

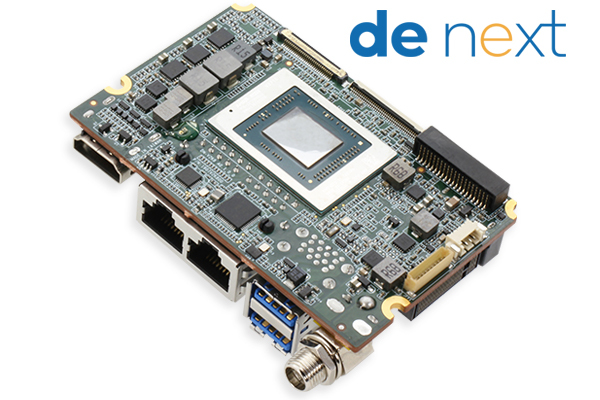

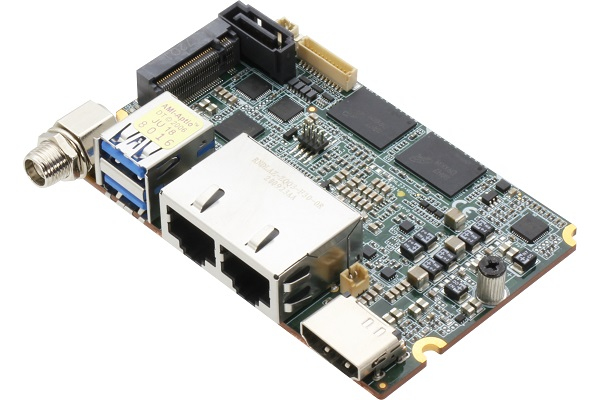

deNEXT-V2K8-A11-0003
Brand: AAEON [An ASUS Co.]
Categories:
deNEXT-V2K8-A11-0003 is a powerful motherboard optimized for Industrial and AI applications.
It provides multitasking performance with its AMD® RYZEN™ V2718 8 Core 1.70 / 4.20 GHz processor.
It offers expandable memory and storage capacity with 16GB onboard RAM and SATA x 1 storage support.
It offers extensive connectivity options with 2.5 GbE x 1 | GbE x 1 LAN ports, USB 3.2 x 2, USB 2.0 x 4 and RS-232/422/485 x 2 serial ports.
It has an operating temperature of 0°C ~ 60°C and is compatible with Windows 10 and Linux Ubuntu 22.04 operating systems.
Features
| Product Code | deNEXT-V2K8-A11-0003 |
| Form Factor | deNEXT System |
| Card Size (mm) | 86 x 55 |
| Cooling | Fan |
| Processor [CPU] | AMD® RYZEN™ V2718 8 Core 1.70 / 4.20 GHz | BM : 16070 |
| Processor [CPU] Family | AMD® RYZEN™ |
| RAM [System Memory] | 16 GB Onboard |
| SSD/HDD/mSATA/M.2 | SATA x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | x2 |
| USB 2.0 | x4 |
| RS 232/422/485 Serial Port | x2 |
| Video Output | eDP1 + 4 x 1 |
| Digital I/O | GPIO 8 Bit |
| Expansion Slot | M.2 M Key x 1 | FPC x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | SIM (Optional) |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
