deNEXT-RAP8-EBX-A10-A001
Brand: AAEON [An ASUS Co.]
Categories:

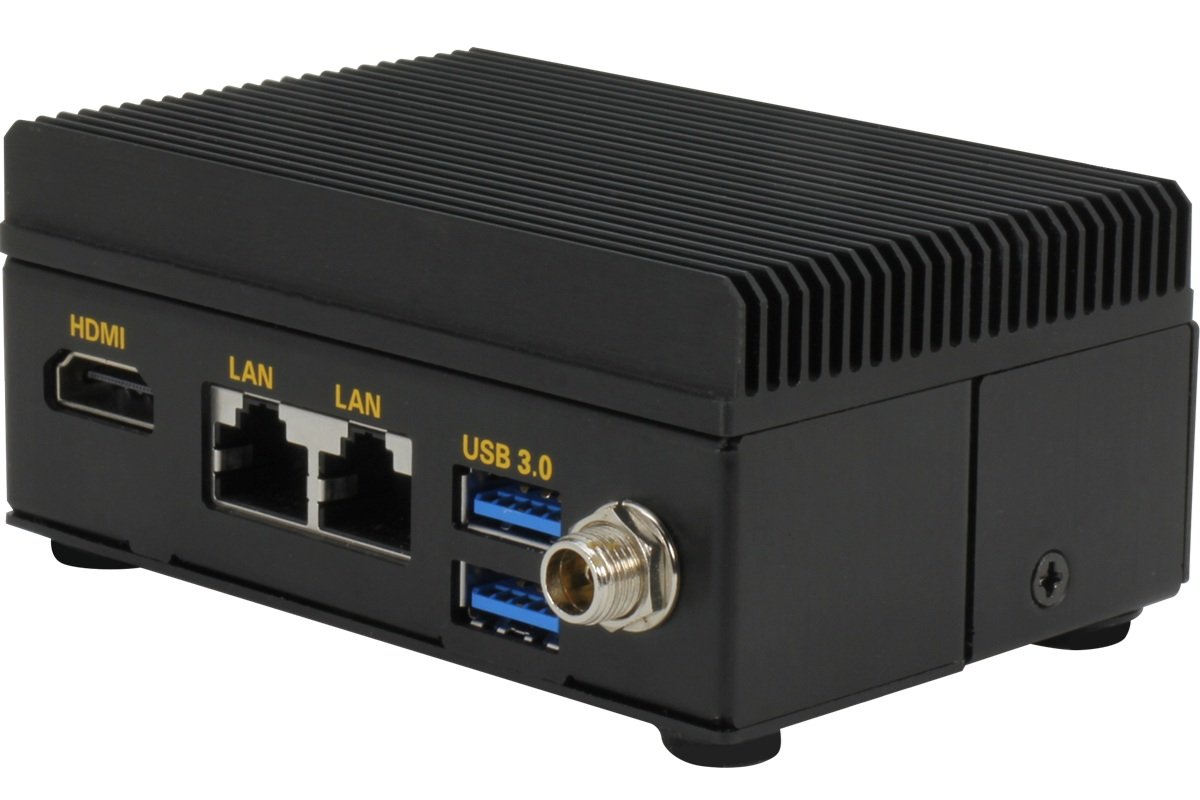

Equipped with a 13th generation Intel® Core™ processor, the de next-RAP8-EZBOX delivers high performance despite its ultra-small size.
It provides robust network communication with 2.5GbE and 1GbE Ethernet connections; supports fast data transfer with USB 3.2 Gen 2 ports.
With its 15W TDP processor, it is ideal for energy-efficient, continuously operating systems.
It provides easy integration with different storage and expansion cards thanks to the M.2 2280 M-Key slot.
With its 12V DC input and optional power adapter, it provides quick installation and reliable operation in the field.
Features
| Product Code | deNEXT-RAP8-EBX-A10-A001 |
| Card Size (mm) | 86mm x 55mm, Single board computer |
| Cooling | Fan |
| Processor [CPU] | Intel® Core™ i7-1365UE 10 Core 1.70 / 4.90 GHz | BM : 10060 |
| Processor [CPU] Family | Intel® Core™ i7 13. Gen |
| RAM [System Memory] | 16GB LPDDR5x |
| SSD/HDD/mSATA/M.2 | M.2 2280 M key (PCIe[x2]) x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | x 2 |
| Video Output | HDMI x 1 |
| Expansion Slot | M.2 2280 M key (PCIe[x2]) x 1 |
| Supply Voltage | DC 12V |
| Working temperature | -40°C ~ 80°C |
| External Dimensions (mm) | 3.75 x 2.73 x 1.78 |
| Certificates | CE | FCC Class A |
| Supported Operating Systems | Windows®10 | Linux | İşletim sistemi lisans harici olarak satılır. |
