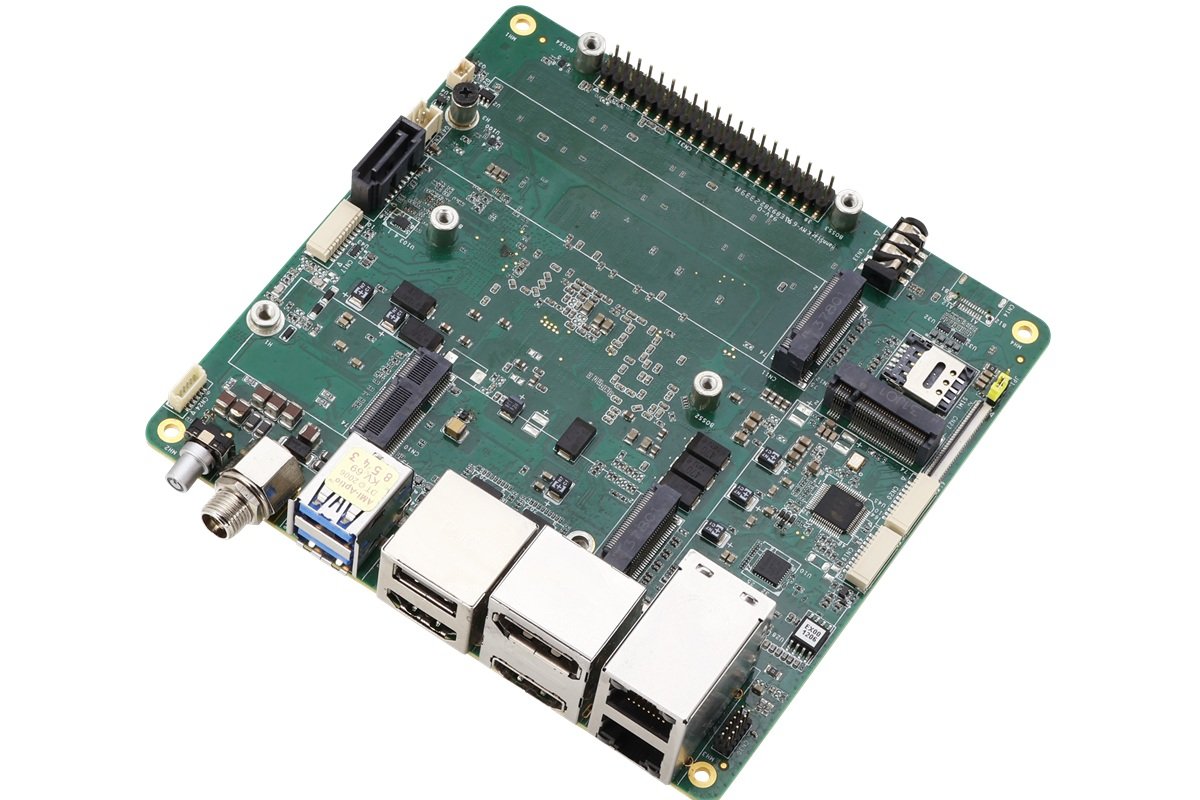

UPX-ARL255H-A10-3200
Brand: AAEON [An ASUS Co.]
Categories:
It offers 97 TOPS (Tera Operations Per Second) of AI performance and provides triple acceleration with Intel® Core™ Ultra 200H Series processors, Intel® Arc™ GPU, and Intel® AI Boost NPU.
It delivers the most powerful developer board performance and fast storage with up to 64GB of LPDDR5 6400MHz RAM and dual M.2 2280 M-Key (NVMe) slots.
With features such as a 40-pin GPIO, dual RS-232/422/485 serial ports, and MIPI camera support, it is specifically designed for AMR (Autonomous Mobile Robots) and advanced robotics solutions.
It provides comprehensive wired and wireless connectivity with dual Ethernet ports, one of which is 2.5GbE, an M.2 B-Key slot for 5G, and M.2 E-Key slots for Wi-Fi/Bluetooth.
It supports a wide voltage range of 9V∼36V with a lockable DC input and is resistant to vibration and power fluctuations in industrial environments due to its compact form factor.
Features
| Product Code | UPX-ARL255H-A10-3200 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ Ultra 7 255H 1.50/2.00 GHz ∣ BM: 30.839 |
| Processor [CPU] Family | Intel® Core™ Ultra 7 |
| RAM [System Memory] | 32GB Onboard LPDDR5 |
| SSD/HDD/mSATA/M.2 | SATA 6.0 Gb/s x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | x 2 |
| USB 2.0 | x 2 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI 2.1 x 2 + DP 2.1 x 1 |
| Audio Output | Line-out x 1, MIC-in x 1 |
| Expansion Slot | M.2 M-Key x 2, M.2 E-Key x 1, M.2 B-Key x 1 |
| Power Consumption | 57.6W~86.4W |
| Supply Voltage | 9V-36V |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 4.74 x 4.82 |
| Weight (kg) | 0,36 |
| Certificates | CE | FCC Class A | RoHS Compliant | REACH |
| Supported Operating Systems | Windows® 10 | Windows® 11 | Linux Ubuntu 22.04 | Operating system license is sold separately. |
