UPC-7210-I71
Brand: IBASE
Categories:

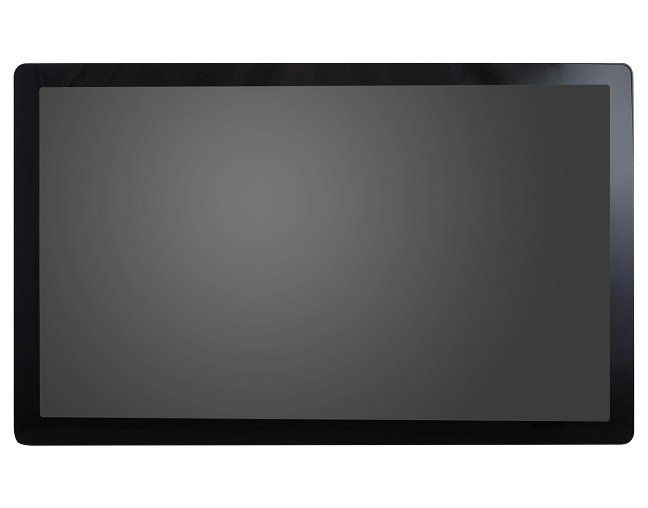

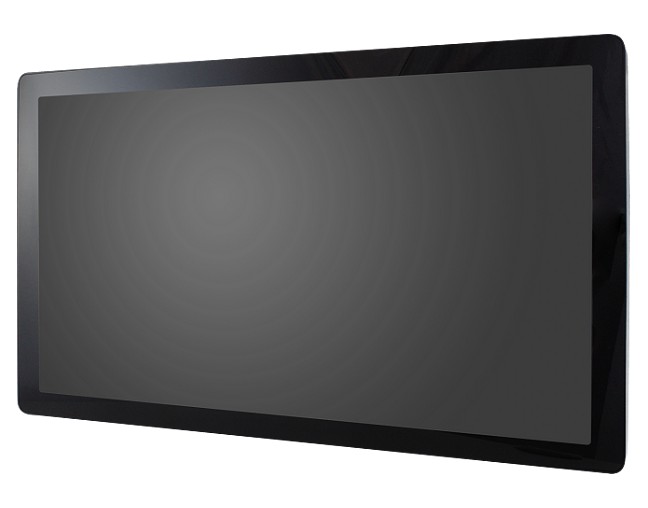

The UPC-7210 Fanless 21.5" panel PC is built for smart retail applications. It features a full-flat bezel design and a 1920x1080 IPS LCD with a projective capacitive touchscreen that allows multi-touch and gesture touch functions.
The unit features a high-reliability, sealed chassis with an IP65-rated front panel for water resistance and is powered by 7th Generation Intel® Core™ Processors.

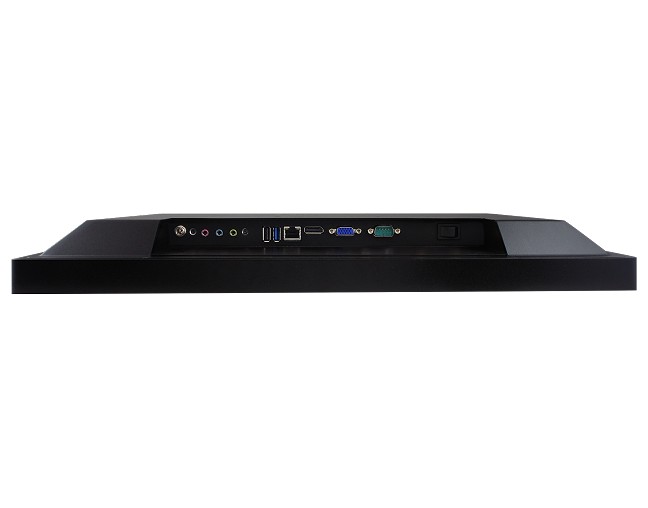

The UPC-7210 is equipped with four USB 3.0, one USB 2.0, two Gigabit Ethernet, extra HDMI and DP graphics, 24VDC input, and support for up to 32GB of DDR4. Common features include 64GB SSD storage, mPCIe for mSATA, 12VDC input
This visually appealing panel PC aims to enhance customer experiences in retail and food and beverage environments such as grocery stores, shopping malls, airports, cinemas and specialty stores.
Features
| Product Code | UPC-7210-I71 |
| Screen size | 21.5" TFT LCD |
| Resolution | 1920 x 1080 |
| Screen Format | 16 | 9 |
| Brightness | 250 cd/m² |
| Contrast | 1000 | 1 |
| Viewing Angle | 178°(H) / 178°(V) |
| Touch Type | Projective Capacitive [P-CAP] |
| Backlight Life (Min. Hours) | 30000 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i3-7100U 2 Core 2.40 GHz | BM : 2790 |
| Processor [CPU] Family | Intel® Core™ i3 7th Gen |
| RAM [System Memory] | Standard DDR4 [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 1 | [Upgradeable] |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x4 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | HDMI x 1 + DP x 1 |
| Audio Output | Line-out x 1 |
| Wireless | Wi-Fi / BT Optional |
| Mounting Type | VESA 75 | VESA100 | Panel Mount | Stand | Mounting Unit Not Included. |
| Supply Voltage | DC 12-24V |
| Working temperature | 0°C ~ 50°C |
| External Dimensions (mm) | 530 x 321 x 59 |
| Body Material | Aluminum |
| IP Protection Class | Front IP65 |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
