SI-626
Brand: IBASE
Categories:

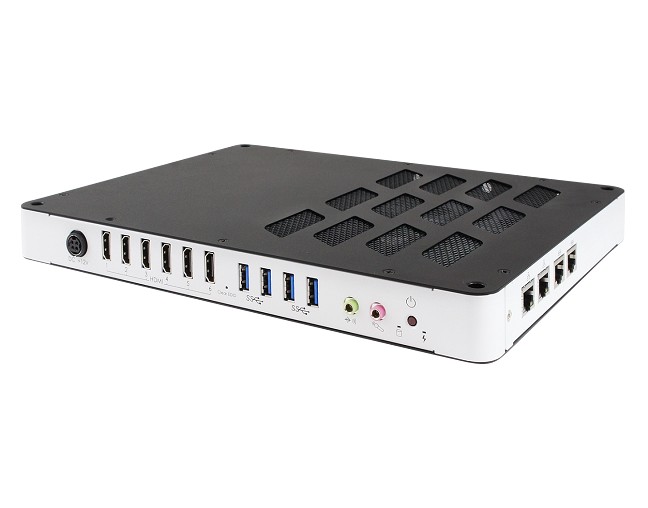

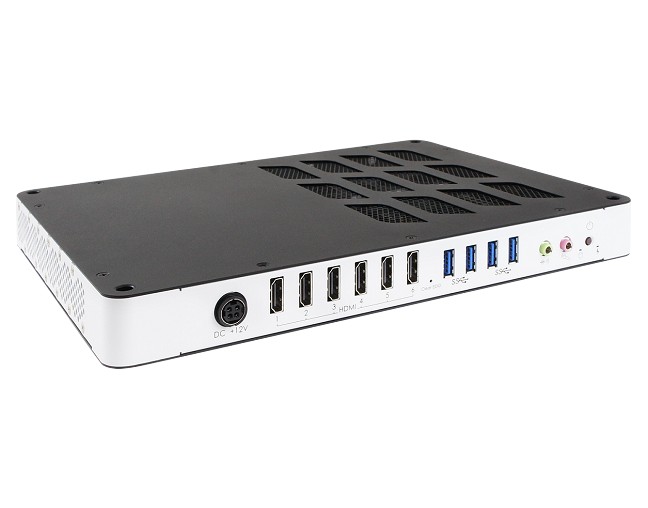

The SI-626 is a digital signage system based on 6th and 7th Generation Intel® Core™ mobile processors and powered by an AMD® Radeon™ E8860 graphics GPU that delivers incredible ultra-high-definition multimedia using the advanced Graphics Core Next (GCN) architecture. Play on six HDMI displays.
To produce a high-performance digital signage player, the SI-626 combines the processing power of the Intel® Core™ i7-7820EQ with the superior graphics capabilities of the AMD® Radeon E8860. The SI-626 is very thin, less than 30mm thick, yet uses components from IBASE.
IBASE iCONTROL intelligent energy-saving green technology and Observer remote monitoring technology on SI-626, automatic power planning, power outage detection to reduce outage time, restore to default status in case of system crash
The SI-626 enables ultra-high-definition multimedia playback across multiple screens to capture and hold audience attention like never before in public venues such as large retail stores, shopping malls, airports and train stations.
Features
| Product Code | SI-626 |
| Processor [CPU] | Intel® Core™ i7-7820EQ 2 Core 2.80 GHz | BM : 7080 |
| Processor [CPU] Family | Intel® Core™ i7 7th Gen |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA 128 GB |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x4 |
| RS 232 Serial Port | x2 |

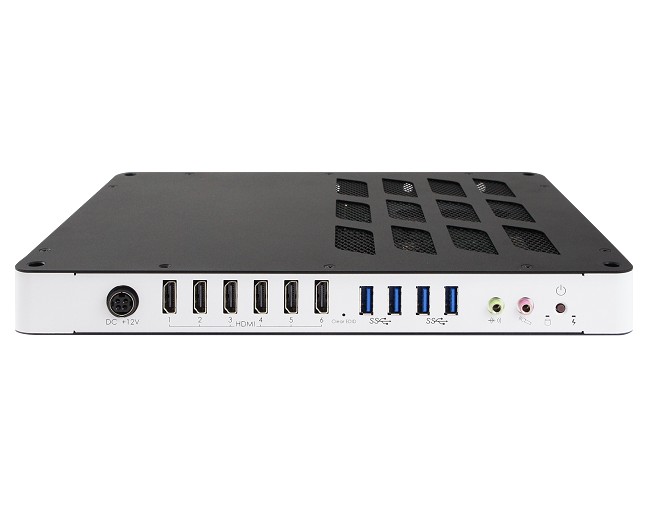

| Video Output | HDMI x 6 |
| Expansion Slot | M.2 E Key x 1 |
| Mounting Type | Standard system bracket |
| Supply Voltage | DC 12V |
| Working temperature | 0°C ~ 45°C |
| External Dimensions (mm) | 290 x 222 x 29.9 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
