SA-101-NQC
Brand: IBASE
Categories: ARM-based signage player

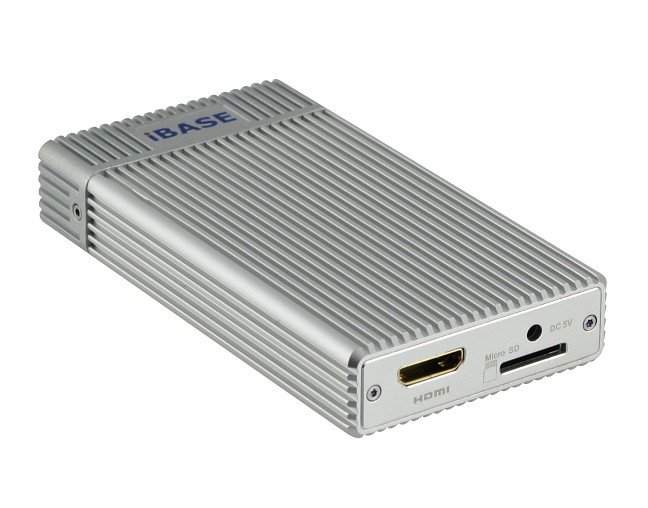

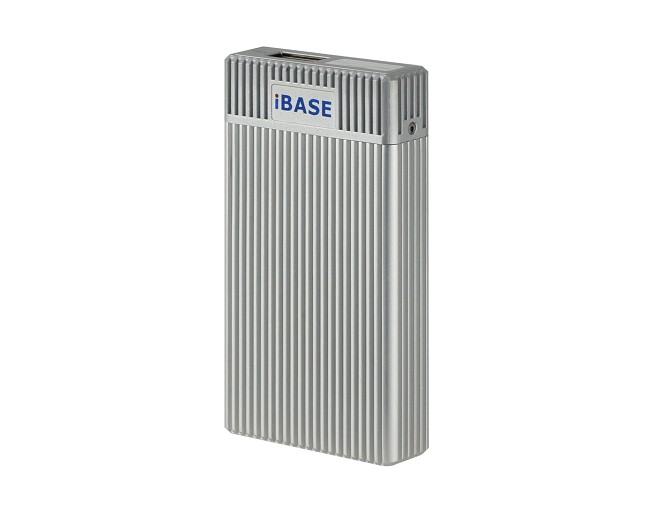

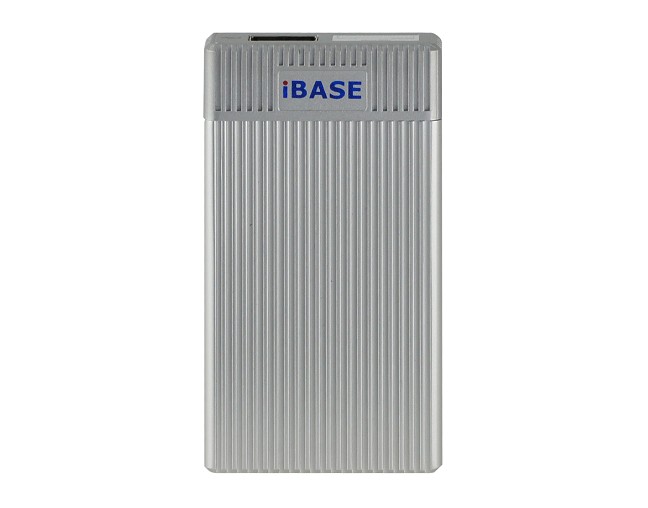

SA-101-N is a business card-sized, fanless signage player with Mini HDMI (Type-C) output. Housed in a compact 8.5 x 4.5 x 1.5cm aluminum body, this player supports i.MX6 Dual/Quad CPU with built-in DDR3L memory and an eMMC HAND flash. The SA-101-N comes with an ADplayer, a 5V DC input power input, and supports 802.11 a/b/g/n, a USB, and a MicroSD card slot.
Features
| Product Code | SA-101-NQC |
| Processor [CPU] | IMX6QC 1GHz |
| Processor [CPU] Family | ARM® |
| RAM [System Memory] | 4 GB Onboard |
| SSD/HDD/mSATA/M.2 | 8 GB eMMC |
| USB 2.0 | x1 |
| Video Output | Mini-HDMI x 1 |
| Mounting Type | Standard system bracket |
| Supply Voltage | DC 5V |
| Working temperature | 0°C ~ 50°C |
| External Dimensions (mm) | 85 x 45 x 15 |
| Body Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
