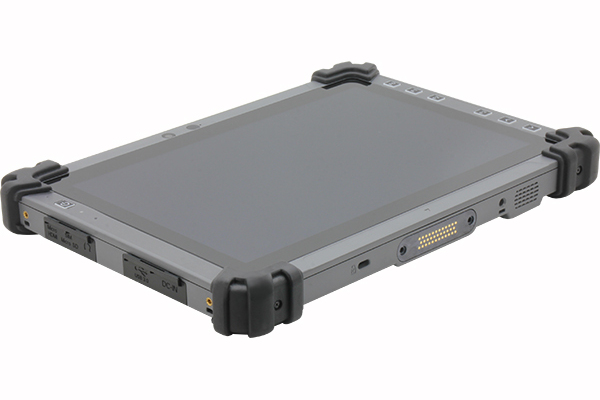

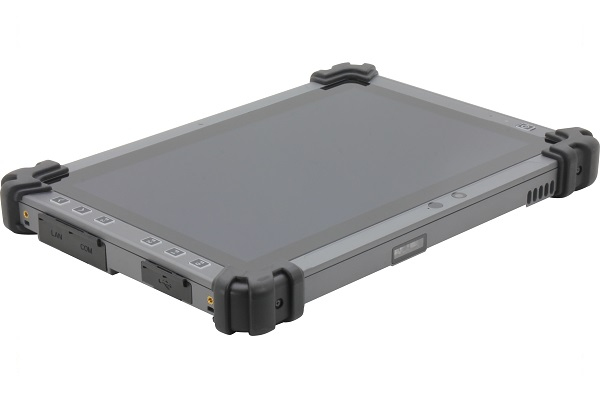

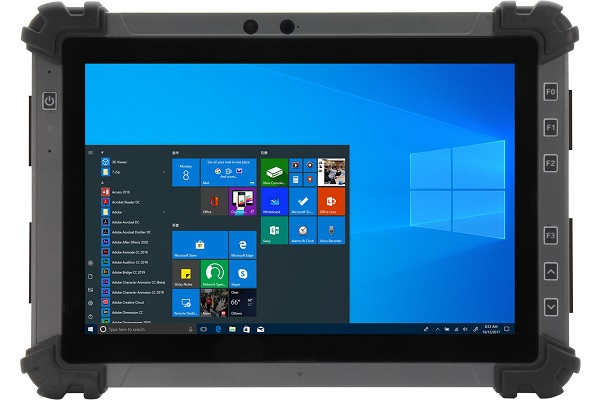

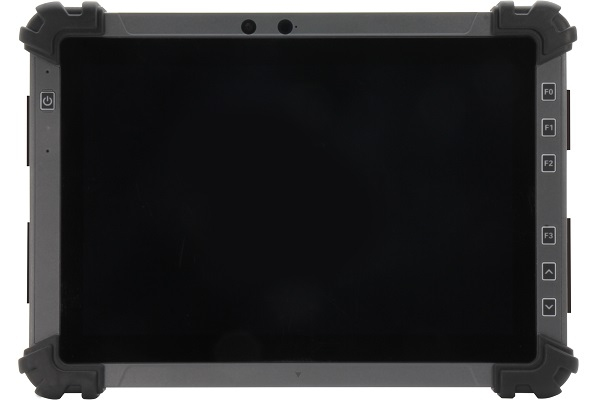

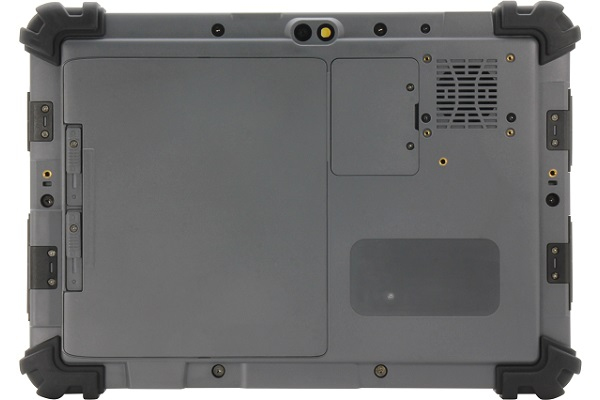

RTC-1020-RH0003
Brand: AAEON [An ASUS Co.]
Categories:
The RTC-1020-RH0003 features an 11th Generation Intel® Core™ i5 processor, providing powerful processing power and enabling efficient operation with high resolution support.
The 10.1" TFT LCD screen provides clear visuals in harsh industrial conditions.
The battery capacity is higher, and the hot-swap feature allows battery replacement without turning off the device.
It has six physical buttons and a wide temperature range for ergonomic use.
With a variety of ports and expandable features, the device offers flexibility.
Features
| Product Code | RTC-1020-RH0003 |
| Screen size | 10.1" TFT LCD |
| Resolution | 1920 x 1200 |
| Screen Format | 16 | 9 |
| Brightness | 850 cd/m² |
| Contrast | 1000 | 1 |
| Touch Type | Projective Capacitive [P-CAP] |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i3-1115G4 2 Core 3.00 / 4.10 GHz | BM : 6100 |
| Processor [CPU] Family | Intel® Core™ i3 11th Gen |
| RAM [System Memory] | 8 GB Onboard |
| SSD/HDD/mSATA/M.2 | M.2 64 GB |
| LAN/Ethernet | GbE x 1 |
| USB 3.2 | 1x USB Type A (+) 1x USB Type C |
| USB 2.0 | x2 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | Micro-HDMI x 1 |
| Audio Output | Line-out x 1 |
| Wireless | 802.11 |
| Bluetooth | BT5.1 |
| Front camera | 5MP |
| Rear Camera | 8 MP Flashlight |
| 4G - LTE | Optional |
| GPS | (+) |
| G Sensor | (+) |
| 2D/QR Code Reader | (+) |
| Light Sensor x 1 | (+) |
| E-Compass | (+) |
| Gyro-Sensor | (+) |
| Battery | 14.4V/2270mAh/32.7W |
| placement | Optional |
| Supply Voltage | DC 12V |
| Working temperature | -20°C ~ 55°C |
| External Dimensions (mm) | 272 x 190 x 24 |
| IP Protection Class | Front IP65 |
| Certificates | CE | FCC | MIL-STD-810H | TELEC |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
