RT-661R-H310-A10-0001
Brand: AAEON [An ASUS Co.]
Categories: Workstation

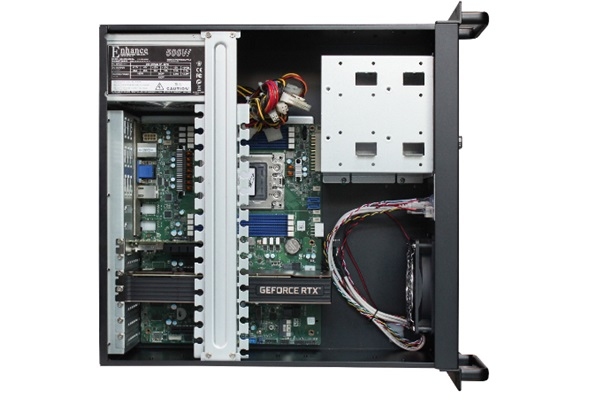

RT-661R-H310-A10-0001 is a 7-slot industrial chassis, equipped with ATX motherboard support and PCIe expansion slots.
Delivers high performance with Intel® Core™ 8th and 9th Generation processors.
It provides multiple connectivity options with USB 3.2 ports and HDMI, VGA video outputs.
Increases security with TPM 2.0 support.
It is resistant to harsh industrial conditions at operating temperatures between 0°C and 45°C.
Features
| Product Code | RT-661R-H310-A10-0001 |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | DDR4 x 2 [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA x 3 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x10 |
| USB 2.0 | x5 |
| RS 232 Serial Port | x1 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | HDMI x 1 + VGA x 1 |
| LVDS | 18/24 bit 2CH x 1 |
| Expansion Slot | PCIe [x16] x 1 | PCIe [x4] x 2 | PCIx3 | | M.2M Key x 1 |
| TPM | TPM 2.0 |
| Mounting Type | 5" RACK | 4U Rackmount |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 45°C |
| External Dimensions (mm) | 427 x 177 x 450 |
| Body Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
