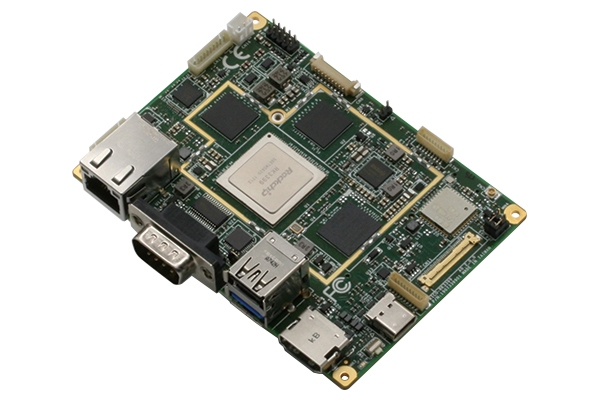

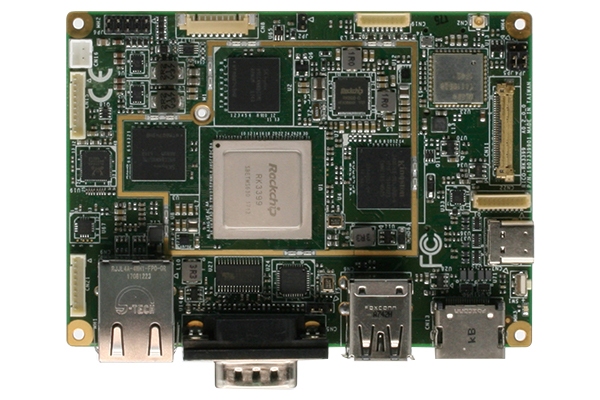

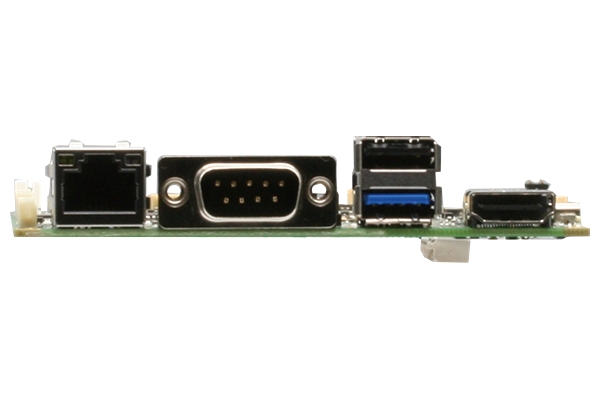

RICO-3399-A10-0003
Brand: AAEON [An ASUS Co.]
Categories:
RICO-3399-A10-0003, Industrial motherboard provides a powerful RISC platform for a multitude of applications.
Equipped with a 6-Core processor, this device offers graphics processing capability with 4K Ultra HD support.
It provides a compact and energy-efficient solution with its Pico-ITX form factor and fanless design.
The Rockchip RK3399 ARM® processor is ideal for complex applications such as smart cameras and machine learning.
It can be easily integrated into industrial systems with various expansion options.
Features
| Product Code | RICO-3399-A10-0003 |
| Form Factor | PICO-ITX |
| Card Size (mm) | 100 x 72 |
| Processor [CPU] | RockChip™ RK3399 + Dual Core Cortex® A72 1.80 GHz + Cortex® A53 Quad Core 1.40 GHz |
| Processor [CPU] Family | RockChip™ |
| RAM [System Memory] | 4 GB Onboard |
| SSD/HDD/mSATA/M.2 | 16 GB eMMC |
| LAN/Ethernet | GbE x 1 |
| USB 2.0 | x1 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | HDMI x 1 |
| Supply Voltage | DC 12V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Android 7.x | Android 10.x | Android 11.x |
