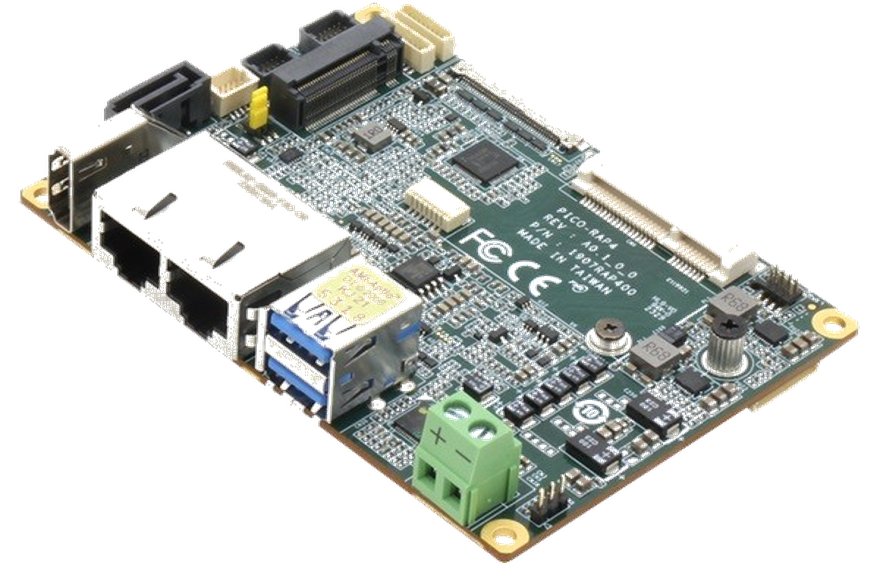

PICO-RAP4-A10-0003
Brand: AAEON [An ASUS Co.]
Categories:
The PICO-RAP4-A10-0003 Pico-ITX board with Intel® Core™ i5 processor is an excellent choice for industrial and IoT applications.
It handles high-speed data processing and multitasking with ease with DDR4 memory.
It provides fast and reliable network connection with 2.5 GbE and 1 GbE Ethernet ports.
HDMI 1.4 and eDP 1.4 video outputs are ideal for high-resolution images.
It provides security and connectivity with its 4G-LTE option and TPM 2.0 module.
Features
| Product Code | PICO-RAP4-A10-0003 |
| Form Factor | PICO-ITX |
| Card Size (mm) | 100 x 72 |
| Processor [CPU] | Intel® Core™ i5-1340PE 12 Core 1.80 / 4.50 GHz | BM : 20040 |
| Processor [CPU] Family | Intel® Core™ i5 13th Gen |
| RAM [System Memory] | DDR4 |
| SSD/HDD/mSATA/M.2 | SATA 6 GB/sx 1 |
| LAN/Ethernet | GbE x 1 | 2.5GbE x 1 |
| USB 3.2 | x2 |
| USB 2.0 | x2 |
| Digital I/O | GPIO |
| Video Output | HDMI 1.4 x 1 LVDS/eDP x 1 (Standard: LVDS)Inverter x 1 (12V/2A) |
| LVDS | x1 |
| Expansion Slot | M.2 2280 M-Key x 1 miniCard (Half) x 1 |
| SMBUS | x1 |
| TPM | TPM 2.0 |
| 4G - LTE | Optional |
| Supply Voltage | DC 12V |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 100 x 72 |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
