PICO-KBU4-A10-0003
Brand: AAEON [An ASUS Co.]
Categories:

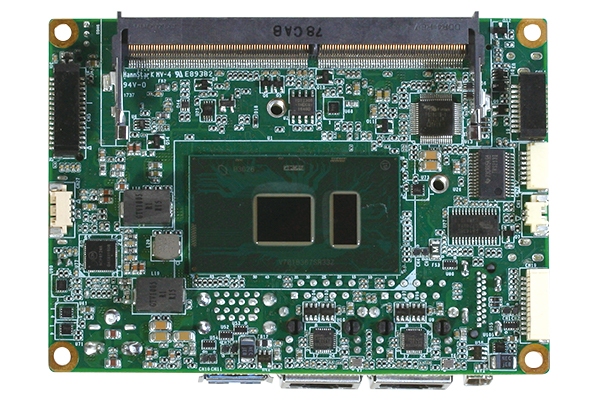

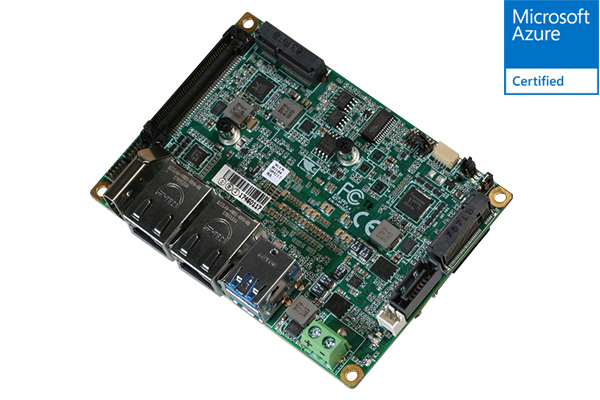

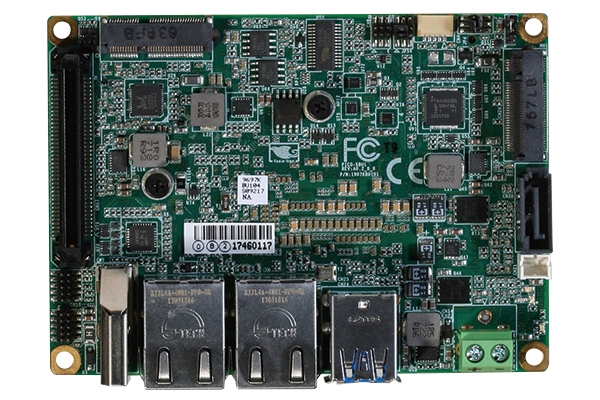

PICO-KBU4-A10-0003 is a powerful industrial motherboard with an Intel® Core™ i5-7300U processor.
It has a durable structure with an operating temperature range of 0°C to 60°C.
It offers high-performance data processing with support for up to 16GB of DDR4 memory.
With HDMI and LVDS outputs, it is suitable for video projections and display installations.
USB 3.0 and USB 2.0 ports provide easy connection with devices.
Features
| Product Code | PICO-KBU4-A10-0003 |
| Form Factor | PICO-ITX |
| Card Size (mm) | 100 x 72 |
| Cooling | Optional: Heat Sink |
| Processor [CPU] | Intel® Core™ i5-7300U 2 Core 2.60 GHz | BM : 3700 |
| Processor [CPU] Family | Intel® Core™ i5 7th Gen |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 x 1 | M.2 M Key x 1 |

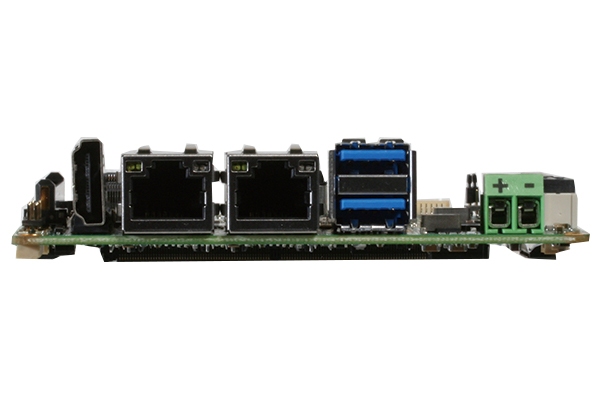

| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x2 |
| USB 2.0 | x2 |
| RS 232 Serial Port | x1 |
| RS 232/422/485 Serial Port | x1 |
| Digital I/O | DIO 4 bit |
| Video Output | HDMI x 1 + LVDS x 1 |
| Expansion Slot | M.2 E Key x 1 | BIO x 1 |
| Supply Voltage | DC 12V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
