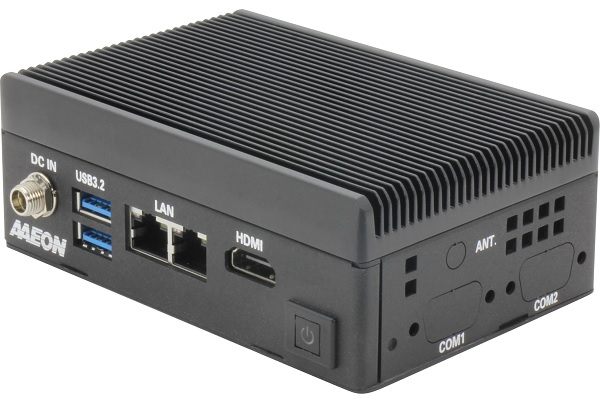

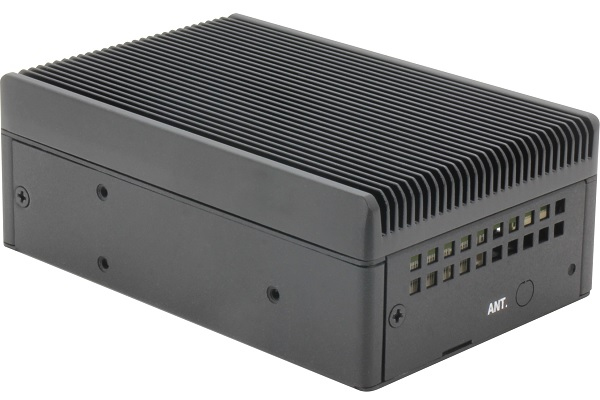

PICO-EHL4-SEMI-A11-S002
Brand: AAEON [An ASUS Co.]
Categories: Pico-ITX
PICO-EHL4-SEMI-A11-S002 is a robust and high-performance motherboard with Intel® Celeron® J6412 processor.
It provides fast data access and multitasking with 8GB RAM and 32GB eMMC.
It offers expandability with dual Gigabit Ethernet ports and USB 3.2 connections.
It provides high-quality visuals with HDMI x 1 and LVDS video outputs.
It is suitable for use in various industrial and IoT applications.
Features
| Product Code | PICO-EHL4-SEMI-A11-S002 |
| Form Factor | PICO-ITX |
| Card Size (mm) | 100 x 72 |
| Cooling | Optional: Heat Sink |
| Processor [CPU] | Intel® Celeron® J6412 4 Core 2.00 / 2.60 GHz | BM : 3850 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | 8 GB |
| SSD/HDD/mSATA/M.2 | 32 GB eMMC |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x2 |
| Video Output | HDMI x 1 |
| Expansion Slot | M.2 E Key x 1 | mSATA x 1 |
| Working temperature | 0°C ~ 50°C |
| External Dimensions (mm) | 100 x 72 |
| Body Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux Ubuntu 20.04 | Operating system sold separately from license. |
