PICO-EHL4-A11-0003
Brand: AAEON [An ASUS Co.]
Categories:

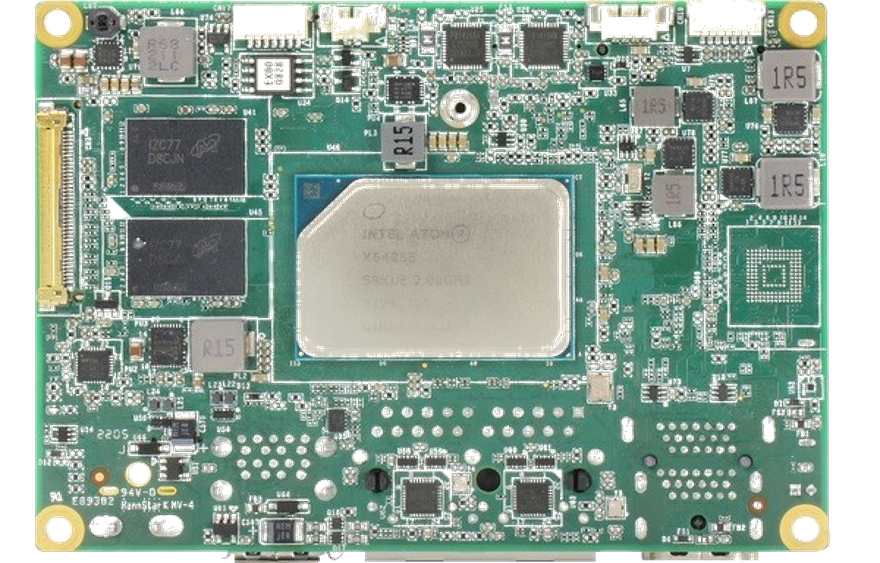

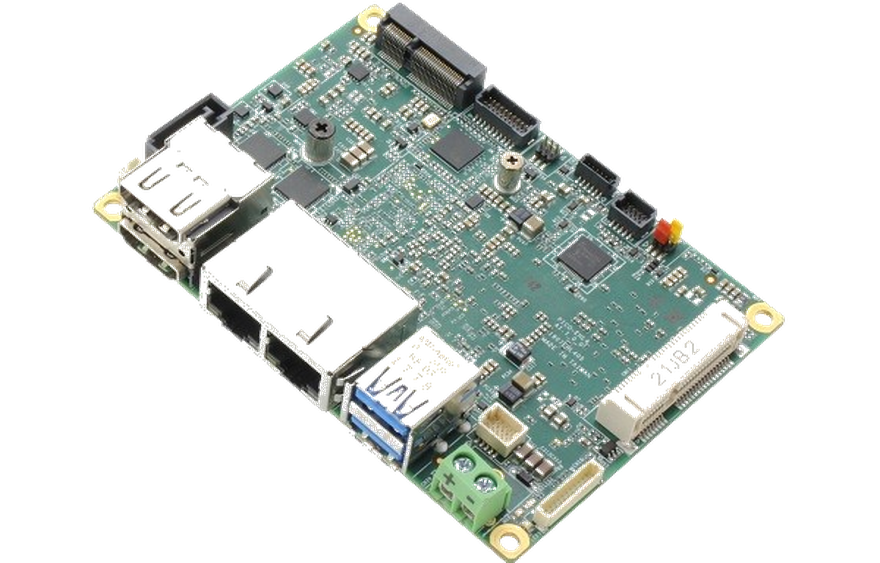

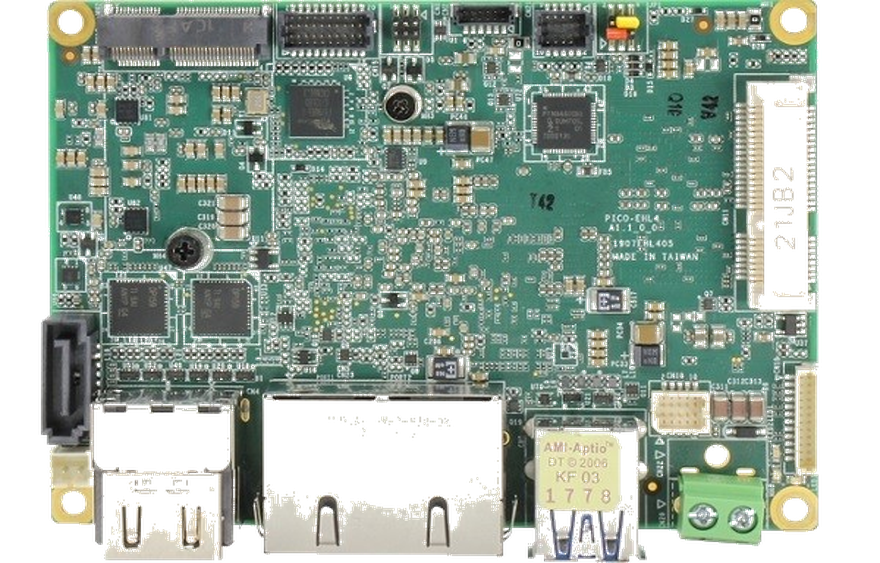

PICO-EHL4-A11-0003 is a compact industrial motherboard with Intel® Celeron® J6412 processor.
It increases data processing capacity with 4 GB RAM and 64 GB eMMC.

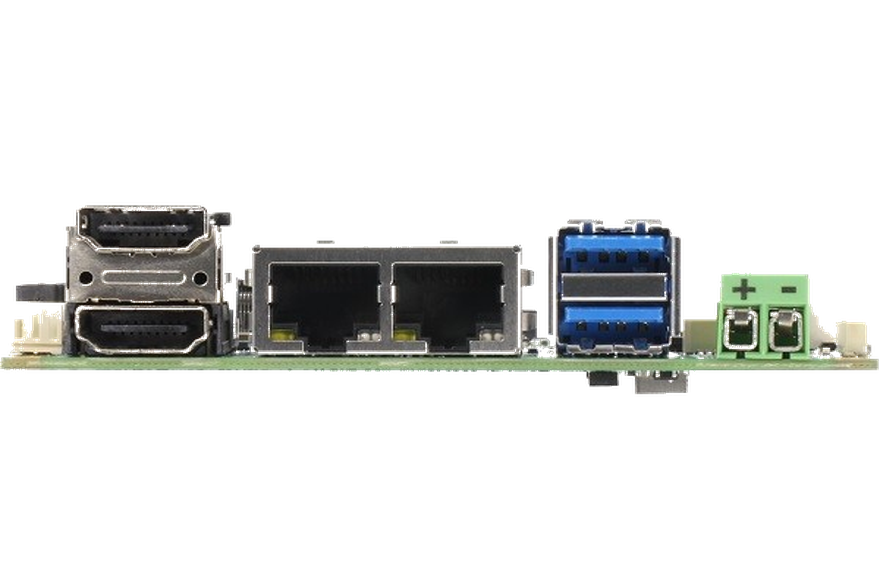

It offers a wide range of connectivity options with dual Gigabit Ethernet, USB 3.2 and USB 2.0 ports.
High-resolution video outputs can be provided thanks to HDMI output and LVDS support.
This motherboard provides stable performance in harsh industrial conditions.
Features
| Product Code | PICO-EHL4-A11-0003 |
| Video Entry | HDMI x 2 |
| Processor [CPU] | Intel® Celeron® J6412 4 Core 2.00 / 2.60 GHz | BM : 3850 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | 4 GB |
| SSD/HDD/mSATA/M.2 | SATA3 x 1 | 64 GB eMMC |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 2 |
| USB 2.0 | x 2 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI x 2 |
| LVDS | x 1 |
| Expansion Slot | M.2 2230 E-key x 1mSATA(Full-size) x 1 |
| Power Consumption | Intel® Atom™ x6425E, LPDDR4x onboard 16GB, 2.48A@ +12V(TYPICAL)Intel® Atom™ x6425E, LPDDR4x onboard 16GB, 2.62A@ +12V(MAX) |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 100 x 72 |
| Certificates | CE/FCC class A |
| Supported Operating Systems | Windows®10 | Linux Ubuntu 20.04 | Operating system sold separately from license. |
