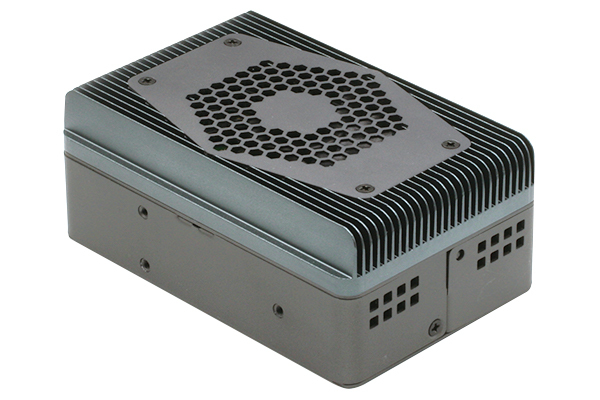

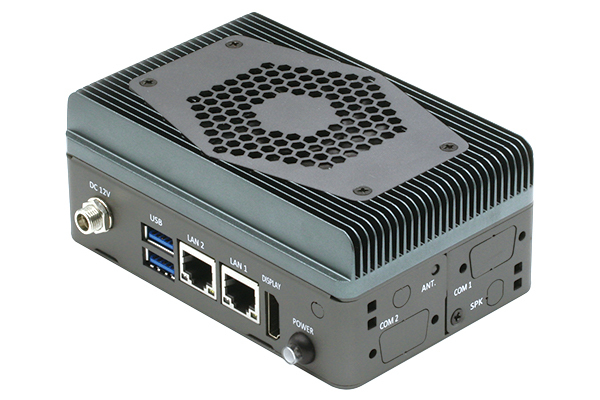

PICO-APL4-SEMI-A10-FS01
Brand: AAEON [An ASUS Co.]
Categories: Pico-ITX
PICO-APL4-SEMI-A10-FS01 is a plug-and-play solution offering easy installation, specifically designed for Industrial applications.
It has fast data processing capacity with its Intel® Celeron® N3350 processor and 2 GB onboard RAM.
USB 3.2 and HDMI connections increase device compatibility.
Provides energy efficiency with DC 12V power input.
Its operating temperature ranges from 0°C to 50°C, resistant to harsh conditions.
Features
| Product Code | PICO-APL4-SEMI-A10-FS01 |
| Form Factor | PICO-ITX |
| Card Size (mm) | 122 x 72 x 50 |
| Cooling | Optional: Heat Sink |
| Processor [CPU] | Intel® Celeron® N3350 2 Core 1.10 / 2.40 GHz | BM : 1107 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | 2 GB Onboard |
| SSD/HDD/mSATA/M.2 | SATA3 x 1 | M.2 M Key x 1 | 32 GB eMMC |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x2 |
| USB 2.0 | x2 |
| Video Output | HDMI x 1 |
| Expansion Slot | M.2 E Key x 1 |
| Supply Voltage | DC 12V AT/ATX |
| Working temperature | 0°C ~ 50°C |
| Body Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
