PICO-APL3-A10-F002
Brand: AAEON [An ASUS Co.]
Categories:

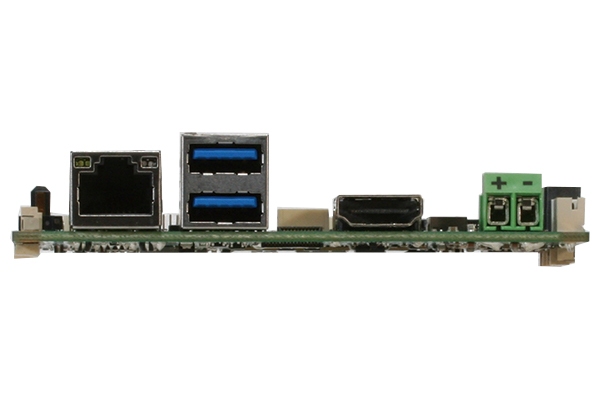

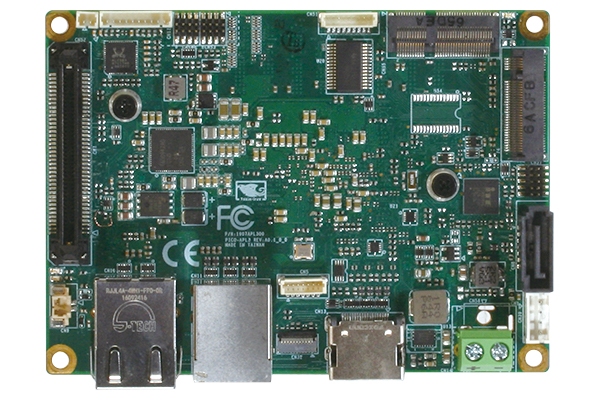

PICO-APL3-A10-F002 is a PICO-ITX motherboard equipped with Intel® Pentium® N4200 processor, featuring low power consumption and high reliability.
It accelerates data access with 4GB onboard RAM and 32GB eMMC storage.
Provides expandability with HDMI output and DIO 4-bit digital I/O.
USB 3.0 and USB 2.0 ports make it easy to connect devices.
It offers reliable operation with DC 12V supply voltage and a temperature range of -10°C to 60°C.
Features
| Product Code | PICO-APL3-A10-F002 |
| Form Factor | PICO-ITX |
| Card Size (mm) | 100 x 72 |
| Cooling | Optional: Heat Sink |
| Processor [CPU] | Intel® Celeron® N3350 2 Core 1.10 / 2.40 GHz | BM : 1107 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | 4 GB Onboard |
| SSD/HDD/mSATA/M.2 | SATA3 x 1 | M.2 M Key x 1 | 32 GB eMMC |
| LAN/Ethernet | GbE x 1 |
| USB 3.0 | x2 |
| USB 2.0 | x2 |
| RS 232 Serial Port | x2 |
| Video Output | HDMI x 1 + eDP x 1 |
| Digital I/O | DIO 4 bit |
| Expansion Slot | M.2 E Key x 1 |
| Supply Voltage | DC 12V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
