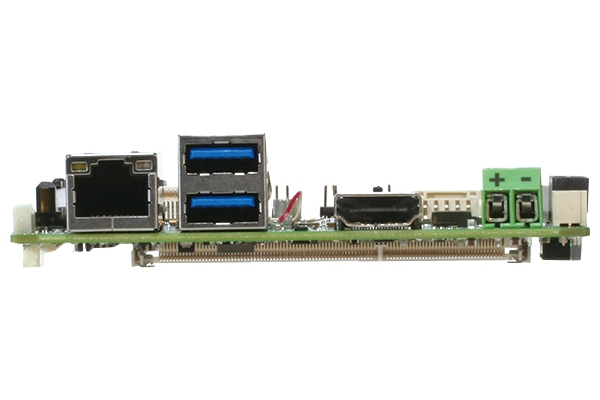

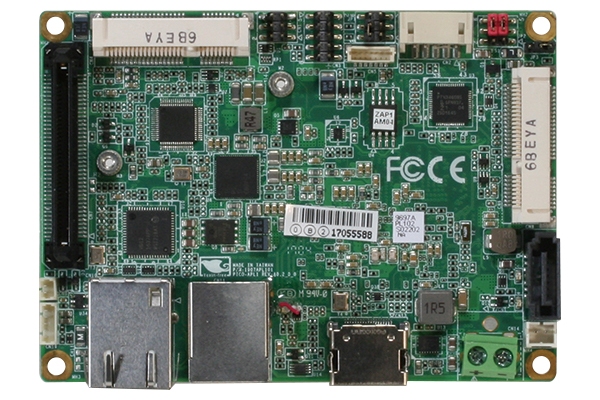

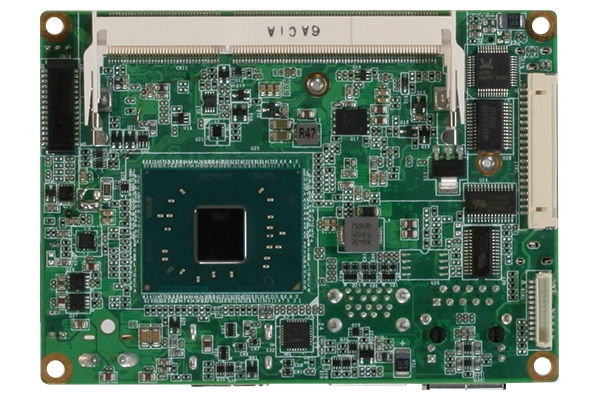

PICO-APL1-A11-F0A4
Brand: AAEON [An ASUS Co.]
Categories:
PICO-APL1-A11-F0A4, PICO-APL1 provides an ideal solution for industrial projects, provides powerful performance with Intel® Atom™ x5-E3940 processor.
With 4 GB RAM support, it provides efficient data processing and offers high-speed connection.
Expandable for fast data transfer via M.2 slot.
Supports multi-display with HDMI and LVDS video output.
It adapts to harsh industrial environments with its DC 12V power input and wide temperature range.
Features
| Product Code | PICO-APL1-A11-F0A4 |
| Form Factor | PICO-ITX |
| Card Size (mm) | 100 x 72 |
| Cooling | Optional: Heat Sink |
| Processor [CPU] | Intel® Atom™ x5-E3940 4 Core 1.60 GHz BM : 1970 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 |
| LAN/Ethernet | GbE x 1 |
| USB 3.2 | x1 |
| USB 2.0 | x1 |
| RS 232 Serial Port | x1 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | HDMI x 1 + LVDS x 1 |
| Digital I/O | DIOx 4 |
| Expansion Slot | Half Size Mini-PCIe x 1 |
| Supply Voltage | DC 12V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
