MIX-TLUD1-A10-6305E
Brand: AAEON [An ASUS Co.]
Categories:

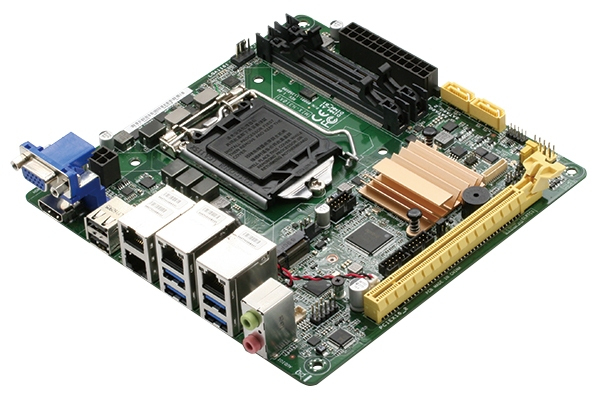

MIX-TLUD1-A10-6305E Mini-ITX motherboard with 11th Generation Intel® Core™ processor provides powerful processing performance.
It supports 4K resolution with 4 display outputs (HDMI x 1 + DP x 2).
It provides high-speed data transmission with 2.5 GbE x 1 and GbE x 1 Ethernet connections.
PCIe [x1] x 1 expansion slot allows integration of different hardware.
It operates within a durable operating temperature range with a DC 12V power input.
Features
| Product Code | MIX-TLUD1-A10-6305E |
| Form Factor | Mini-ITX |
| Card size (mm) | 170 x 170 |
| Cooling | Fan |
| Processor [CPU] | Intel® Celeron® 6305E 2 Core 1.80 GHz | BM : 2240 |
| Processor [CPU] family | Intel® Celeron® |
| RAM [System Memory] | [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | 3.5" SATA x 1 | SATA x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | x4 |
| USB 2.0 | x4 |
| RS 232 Serial Port | x2 |
| Video Output | HDMI x 1 + DP x 2 |
| Expansion Slot | Mini-PCIe [x1] x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | Optional |
| Supply Voltage | DC 12V |
| Working temperature | 0°C ~ 50°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
