MIX-TLUD1-A10-1115G4E
Brand: AAEON [An ASUS Co.]
Categories:

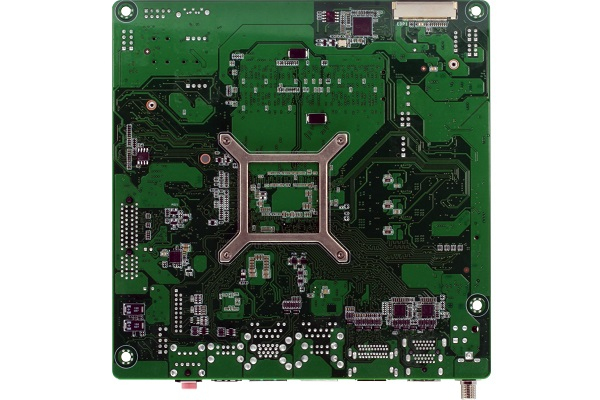

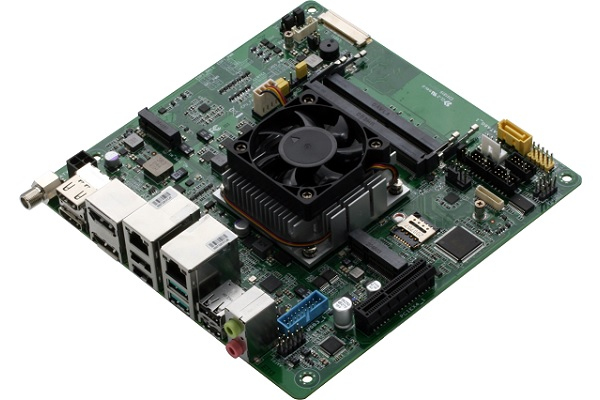

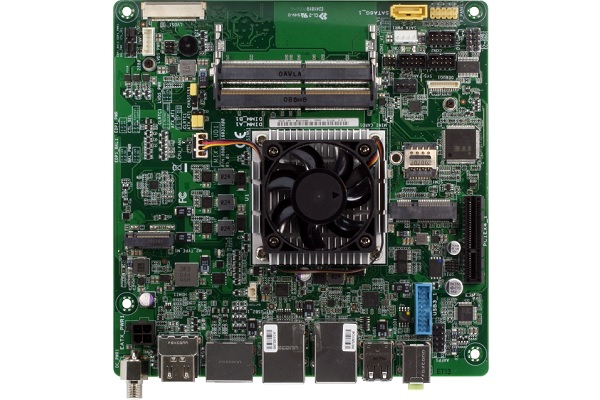

MIX-TLUD1-A10-1115G4E, industrial Mini-ITX motherboard with 11th Generation Intel® Core™ U processors, provides superior processing performance.
It provides 4K 60Hz video output simultaneously with four display outputs (HDMI2.00 + DP1.4).
Provides dual LAN connectivity with 2.5 GbE x 1 and GbE x 1 Ethernet.
It provides rich connectivity options with 4 USB 3.2 Gen2 ports and NVMe M.2 2280 (PCIe 3.0 [x4]) expansion support.
It is compatible with Windows 10 and Linux operating systems.
Features
| Product Code | MIX-TLUD1-A10-1115G4E |
| Form Factor | Mini-ITX |
| Card size (mm) | 170 x 170 |
| Cooling | Fan |
| Processor [CPU] | Intel® Core™ i3-1115G4 2 Core 3.00 / 4.10 GHz | BM : 6100 |
| Processor [CPU] family | Intel® Core™ i3 11th Gen |
| RAM [System Memory] | [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | 3.5" SATA x 1 | SATA x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | x4 |
| USB 2.0 | x4 |
| RS 232 Serial Port | x2 |
| Video Output | HDMI x 1 + DP x 2 |
| Expansion Slot | Mini-PCIe [x1] x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | SIM (Optional) |
| Supply Voltage | DC 12V |
| Working temperature | 0°C ~ 50°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
