MIX-KLUD1-A10-7100-LV
Brand: AAEON [An ASUS Co.]
Categories:

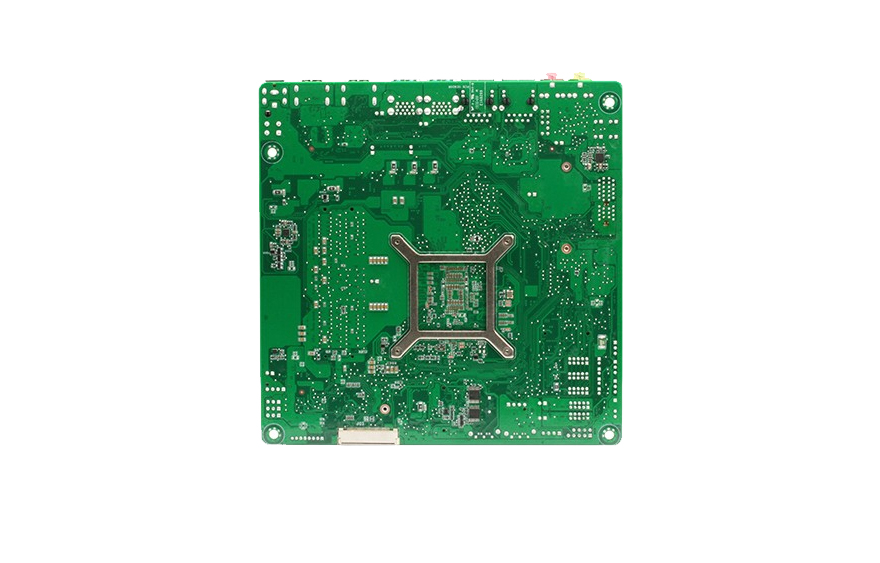

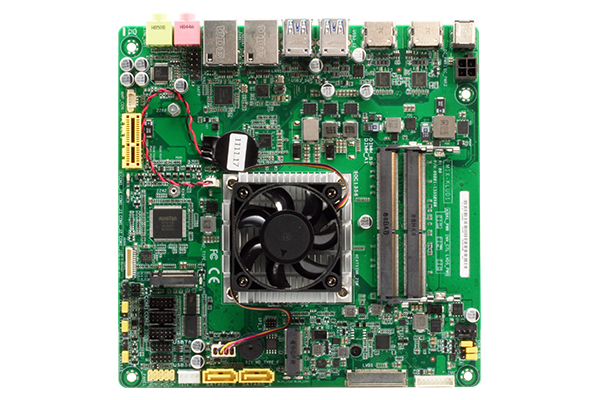

MIX-KLUD1-A10-7100-LV is a high-performance and versatile industrial embedded motherboard equipped with Mini-ITX, 7th Generation Intel® Core™ processors.
It offers expandability with DDR4 x 2 [Max 32 GB] RAM support and M.2 M Key x 1 | SATA3 x 2 storage options.

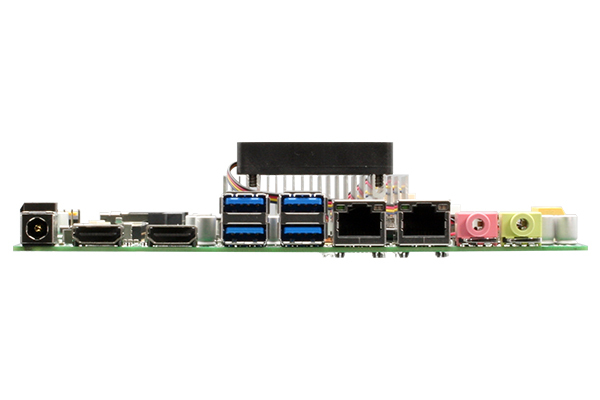

It provides powerful connectivity options with GbE x 2 LAN, USB 3.0 x 2, USB 3.2 x 4, USB 2.0 x 5, RS 232/422/485 serial ports.
It offers flexibility with HDMI x 2, LVDS x 1 video output and PCIe [x1], M.2 (M Key), M.2 (E Key) expansion slots.
It is suitable for industrial applications with DC 12V supply voltage, 0°C ~ 55°C operating temperature and Windows 10 support.
Features
| Product Code | MIX-KLUD1-A10-7100-LV |
| Form Factor | Mini-ITX |
| Card Size (mm) | 170 x 170 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i3-7100U 2 Core 2.40 GHz | BM : 2790 |
| Processor [CPU] Family | Intel® Core™ i3 7. Gen |
| RAM [System Memory] | DDR4 x 2 [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 2 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 4 |
| USB 2.0 | x 5 |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 2 LVDS x 1 |
| Expansion Slot | PCIe [x1] x 1 | M.2(M Key) x 1 | M.2(E Key) x 1 |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 55°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
