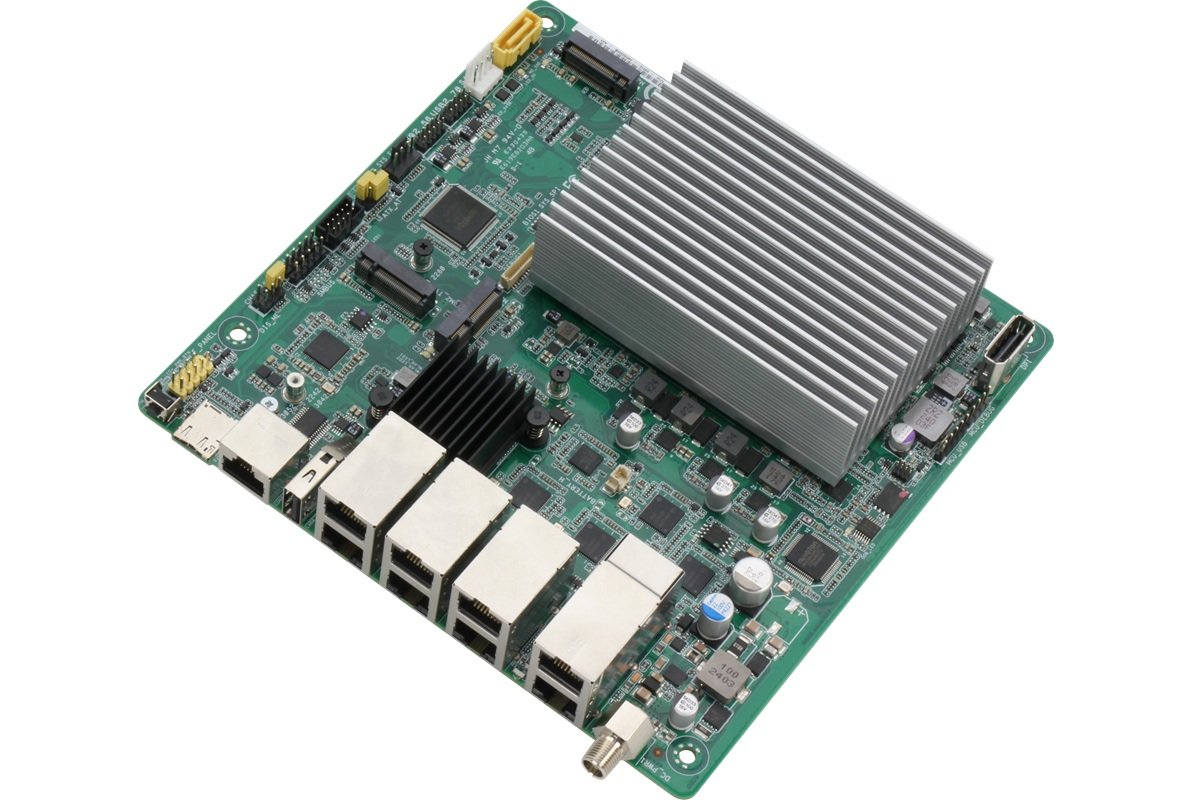

The MIX-ASLD1 is specially manufactured for demanding network applications such as network security, industrial switching, and communication-focused SD-WAN, featuring one PoE (Power over Ethernet) and a total of seven 1GbE LAN ports.
It prioritizes energy efficiency with the next-generation Intel® Processor N-series CPU and support for 4800 MHz DDR5 memory. It ensures long-term, stable industrial operation with low power consumption.
Thanks to integrated OOB (Out-of-Band Management) support on the motherboard, it offers remote management and critical system recovery capabilities even if the system is unresponsive. A Software Reset Button provides complete control.
The M.2 B-Key slot and integrated SIM socket provide rich expansion possibilities for 4G/5G, LTE, and Wi-Fi/Bluetooth modules. This feature is ideal for mobile and distributed IoT applications.
It processes network packets quickly and efficiently with support for DPDK (Data Plane Development Kit). This ensures increased performance in telecommunications, network traffic analysis, and Edge applications requiring high-speed data flow.
Product Code | MIX-ASLD1-A10-N97 |
Form Factor | Mini-ITX |
Cooling | Fanless |
Processor [CPU] | Intel® Processor® N97 |
Processor [CPU] Family | Intel® Processor® |
RAM [System Memory] | SODIMM x 1 |
SSD/HDD/mSATA/M.2 | SATA 6Gb/s x 1M.2 M-Key x 1 |
LAN/Ethernet | PoE x 1 (Intel® Ethernet Controller I210-AT)1GbE LAN x 7 (LAN Controller: Intel® Ethernet Controller I350-AM4 x 1 + Intel®Ethernet Controller I210-AT x 3) |
USB 3.2 | x 1 |
USB 2.0 | x 4 |
Video Output | HDMI x 1 |
Audio Output | Mic-in x 1 + Line-out x 1 |
Expansion Slot | 40-pin GPIO x 1M.2 2230 E-Key x 1M.2 2280 M-Key x 2 (PCIe Gen 4.0 [x4])SATA 6Gb/s x 1M.2 3052 B-Key x 1 (an additional thermal kit is required when 5G module is installed)Nano SIM Slot x 1 |
Power Consumption | Intel® Core™ i7-1270PE, LPDDR5 4800MHz 16GB, 5.86A@+ 12V (Typical)Intel® Core™ i7-1270PE, LPDDR5 4800MHz 16GB, 8.05A@+ 12V (Max) |
Mounting Type | VESA / Duvar Tipi Montaj | Montaj Aparatı Dahil Değildir. (Opsiyonel) |
Supply Voltage | DC 12-36 V |
Working temperature | 0°C ~ 60°C |
External Dimensions (mm) | 152 x 123.8 x 71.5 |
Certificates | CE/FCC class A |
Supported Operating Systems | Windows® 10 | Linux | Operating system license is sold separately. |
