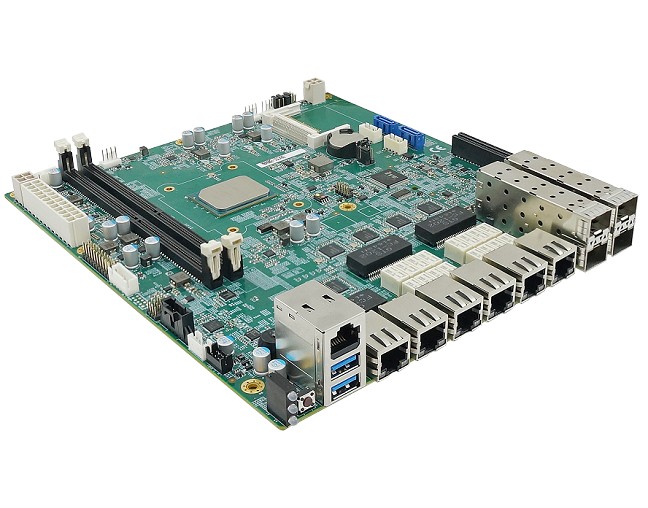

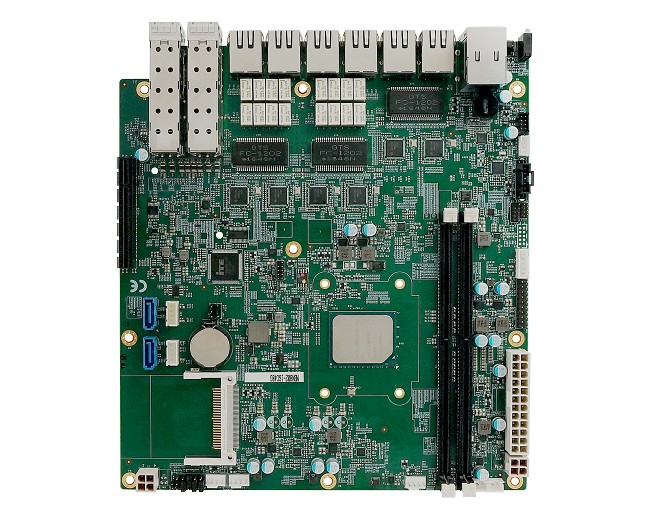

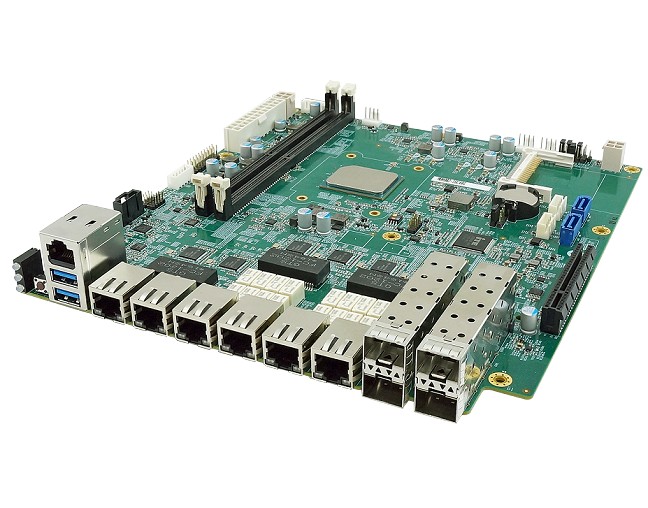

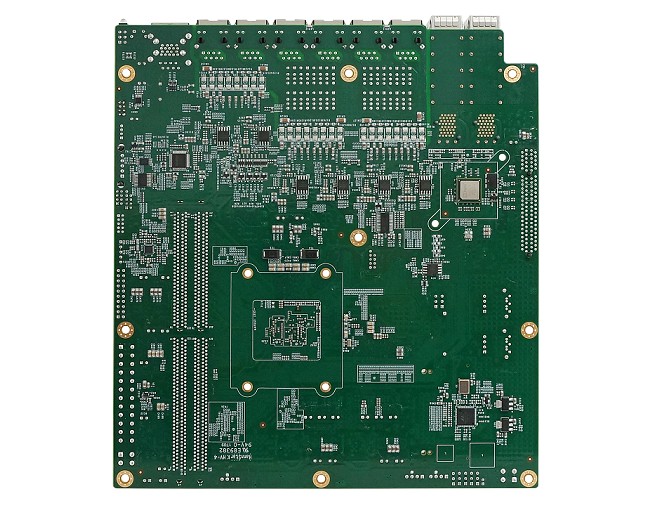

MBN802-8C40G
Brand: IBASE
Categories:
• Intel® Atom™ Processor C3758
• 2x DDR4 DIMMs; Max. 64 GB (ECC/non-ECC and RDIMM)
• 6x PCIe GbE RJ45 ports; 2x Advanced LAN Bypass pair
• 4x 10GbE SFP+ ports
• 1x CF slot
Features
| Product Code | MBN802-8C40G |
| Processor [CPU] | Intel® Atom™ C3758 8 Core 2.20 GHz BM : 4670 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | [Max 32 GB] |
| LAN/Ethernet | GbE x 6 | 10GbE x 4 |
| USB 3.0 | x2 |
| Video Output | x 0 |
| Expansion Slot | CFast x 1 |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 208 x 230 |
| Body Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
