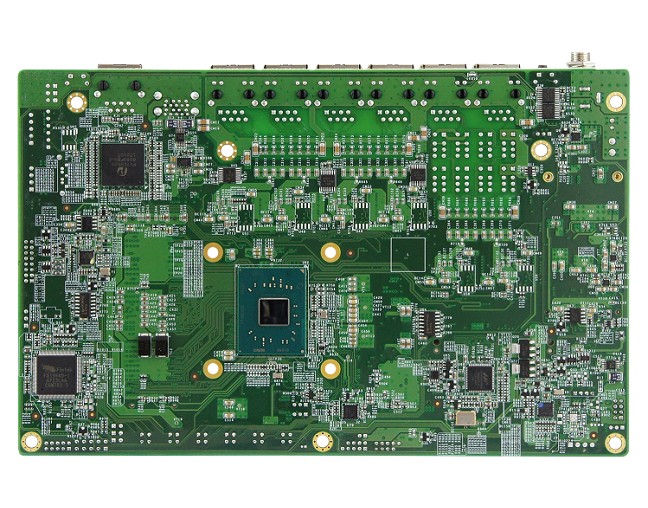

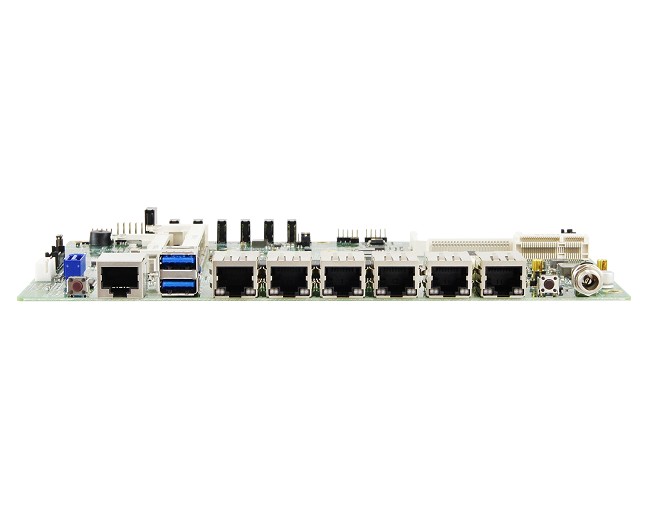

MBN501R-2C
Brand: IBASE
Categories:
• Intel® Celeron® Processor N3350, Dual Core 1.1GHz
• 2x DDR3L SO-DIMM; Max. 16GB (non-ECC)
• 6x PCIe GbE ports; 1 Advanced LAN Bypass pair
• 1x Mini-PCIe slot
• 1x CF slot
Features
| Product Code | MBN501R-2C |
| Processor [CPU] | Intel® Celeron® N3350 2 Core 1.10 / 2.40 GHz | BM : 1107 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | CFast x 1 | SATA3 x 1 |
| LAN/Ethernet | GbE x 6 |
| USB 3.0 | x2 |
| Video Output | VGA x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | PCIe [x1] x 1 | PCIe [x1] x 1 |
| Supply Voltage | DC 12V |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 216 x 138 |
| Body Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
