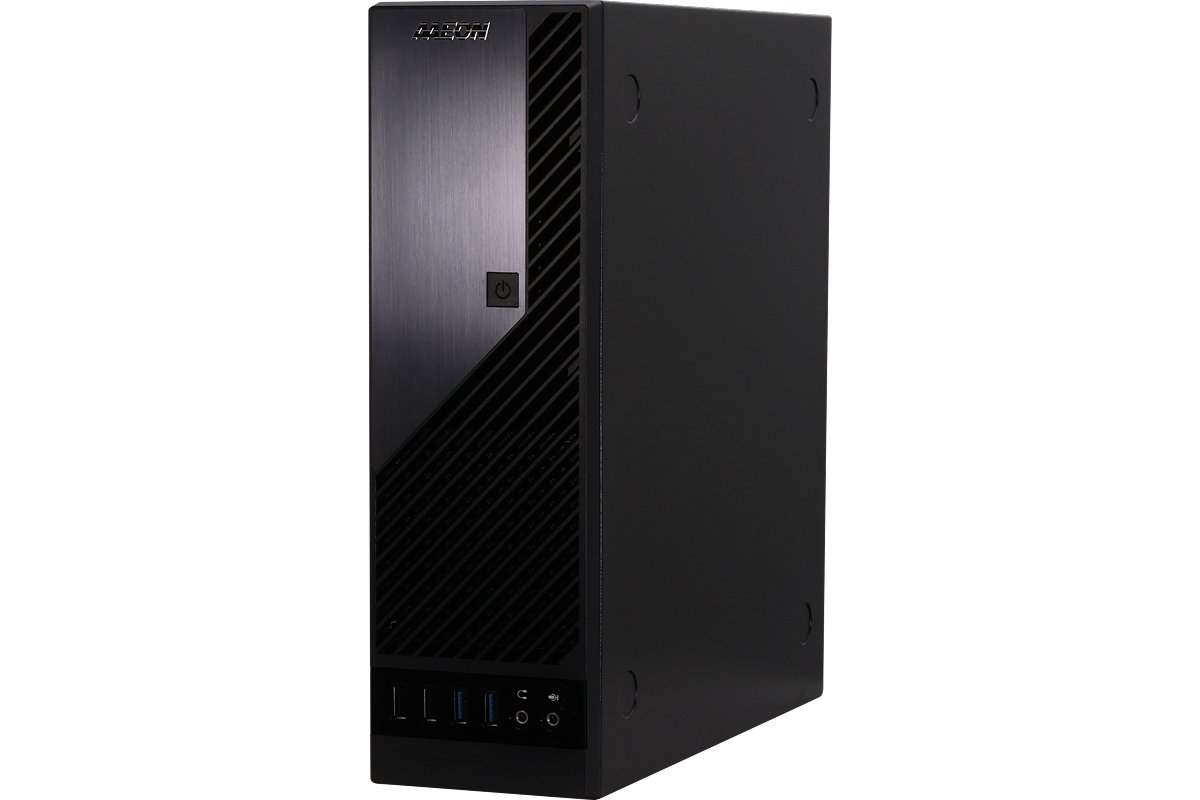

MAXER-5100-Q670-A2-1010
Brand: AAEON [An ASUS Co.]
Categories:
It stands out as the world's smallest industrial-grade AI inference server, ideal for in-field (Edge) applications thanks to its small footprint.
It uniquely offers support for up to two integrated NVIDIA RTX™ 2000 Ada GPUs for inference performance.
It supports the latest 12th, 13th, and 14th Gen Intel® Core™ LGA1700 socket processors, providing high computing power and flexibility.
It features a versatile software framework capable of handling a wide range of tasks, from AI model fine-tuning to centralized Edge server management.
It offers broad storage options with an M.2 M-Key slot for fast NVMe storage and dual SATA Drive Bays; it also includes a TPM 2.0 chip for hardware security.
Features
| Product Code | MAXER-5100-Q670-A2-1010 |
| Form Factor | Tower |
| AI Accelerator| GPU | NVIDIA RTX™ 2000 Ada x 2 |
| Cooling | Fanless |
| Processor [CPU] | (Müşteri Seçimine Bağlı) |
| Processor [CPU] Family | (Müşteri Seçimine Bağlı) |
| RAM [System Memory] | DDR5 4800MHz U-DIMM x 4, Maks. 128GB |
| SSD/HDD/mSATA/M.2 | 2.5” SSD x 1, 3.5” HDD x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | x 6 |
| USB 2.0 | x 2 |
| RS 232/422/485 Serial Port | DB-9 |
| Video Output | HDMI 2.0 x 2 + DP 1.4 x 1 + VGA x 1 |
| Audio Output | Line-out x 2, MIC-in x 2 |
| Expansion Slot | PCIe Gen 4 [x16] x 1, PCIe Gen 4 [x8] x 1, PCIe Gen 3 [x1] x 1, PCIe Gen 3 [x4] x 1, M.2 (M-Key, E-Key) x 2 |
| Mounting Type | Rack Mount |
| Supply Voltage | 450W AC/DC |
| Working temperature | -25˚C ~ 85˚C |
| External Dimensions (mm) | 305 x 95 x 276 |
| Weight (kg) | 5 |
| Certificates | CE | FCC Class A |
| Supported Operating Systems | Windows® 10 | Windows® 11 | Operating system license is sold separately. |
