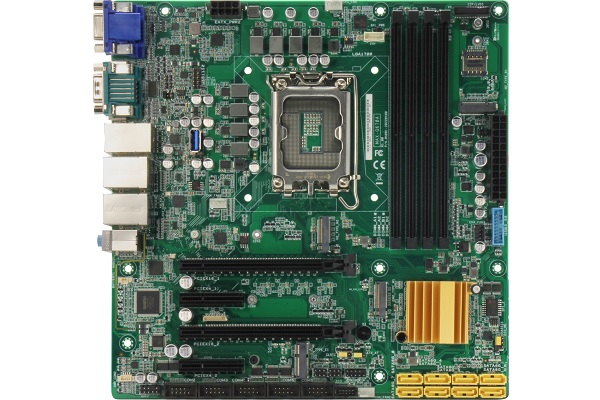

MAX-Q670A-A10-2L
Brand: AAEON [An ASUS Co.]
Categories:
MAX-Q670A-A10-2L Supporting 12th and 13th Generation Intel® Core™ processors, the MAX-Q670A brings unparalleled performance to the Micro-ATX form factor.
It offers a maximum TDP of 125W with the Intel® Core™ processor family.
Provides fast data transfer with 4 x USB 3.2 Gen2 Ports.
It offers expandability with PCIe x16 and x4 slots, M.2 slot and Micro SIM support.
It provides rich connectivity options with HDMI, DP, VGA outputs and 5 x RS-232/422/485 ports.
Features
| Product Code | MAX-Q670A-A10-2L |
| Form Factor | Micro-ATX |
| Card Size (mm) | 244 x 244 |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 128 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 8 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 1 (Header) |
| USB 3.2 | x5 |
| USB 2.0 | x1 |
| RS 232 Serial Port | x5 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | HDMI x 1 + VGA x 1 + DP x 1 |
| Expansion Slot | PCIe [x16] x 2 | | PCIe [x4] x 2 | M.2 | 2242 B Key x 1 | Micro SIM x 1 | M.2 E Key x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | Micro SIM (Optional) |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 244 x 244 |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
