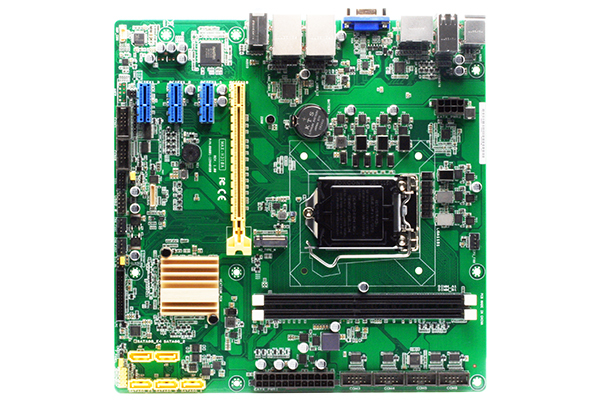

MAX-H310A-A11-210
Brand: AAEON [An ASUS Co.]
Categories:
MAX-H310A-A11-210 provides reliable and fast computing capacity with Intel® Core™ 8th/9th Generation processors.
It has a memory capacity of up to 64 GB with DDR4 RAM support and offers multi-screen support.
It provides various connectivity options with expandable PCIe slots and M.2 M Key support.

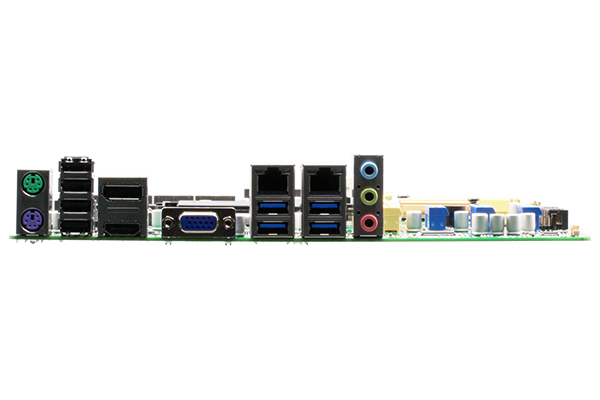

It offers extensive connectivity with HDMI, VGA, DP video outputs and USB 3.2, USB 2.0 ports.
With TPM 2.0 support, it increases security and provides a reliable solution in industrial applications.
Features
| Product Code | MAX-H310A-A11-210 |
| Form Factor | Micro-ATX |
| Card Size (mm) | 244 x 244 |
| Cooling | Optional: Heat Sink |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 3 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x4 |
| USB 2.0 | x6 |
| RS 232 Serial Port | x 5 (header) |
| RS 232/422/485 Serial Port | x 1 (header) |
| Video Output | HDMI x 1 + VGA x 1 + DP x 1 |
| LVDS | POGO 12 Pin x 1 |
| Expansion Slot | M.2 M Key x 1 | PCIe 3.0[x16] Slot x 1 | PCIe 2.0[x1] x 3 | PCIe 3.0[x16] |
| TPM | TPM 2.0 |
| 4G - LTE | SIM (Optional) |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 244 x 244 |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
