MAX-C246A-A20-210
Brand: AAEON [An ASUS Co.]
Categories:
MAX-C246A-A20-210 provides high performance for industrial applications with support for 8th/9th Generation Intel® Core™ processors.
It offers memory capacity up to 128 GB with DDR4 DRAM support.
Provides flexibility with multiple display ports (HDMI x 2 + VGA x 1 + DP x 1) and ample expansion slots.
Data transfer speeds are optimized with PCIe 3.0 x16 slot and M.2 M Key support.
Takes advantage of advanced processor technologies with Intel® Turbo Boost and Intel® Optane™ memory support.
Features
| Product Code | MAX-C246A-A20-210 |

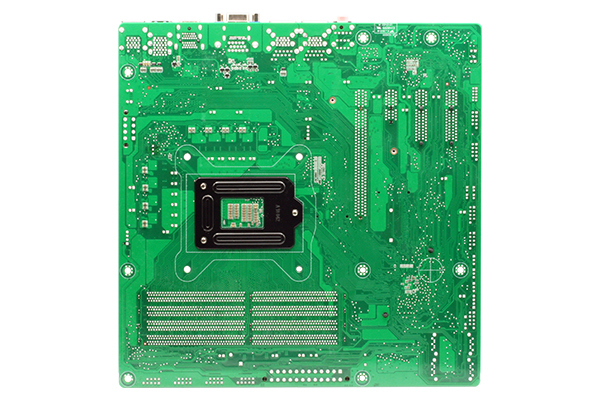

| Form Factor | Micro-ATX |
| Card Size (mm) | 244 x 244 |
| Cooling | Optional: Heat Sink |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 128 GB] |
| SSD/HDD/mSATA/M.2 | SATA3x4 | RAID | M.2M Key x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x6 |
| USB 2.0 | x3 |
| USB 3.2 | x4 |
| RS 232 Serial Port | x 5 (header) |
| RS 232/422/485 Serial Port | x 1 (header) |

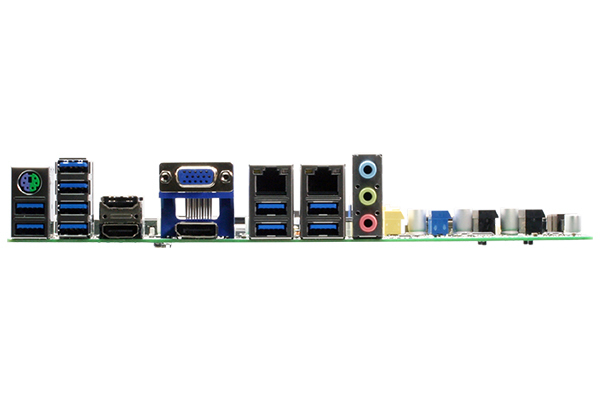

| Video Output | HDMI x 2 + VGA x 1 + DP x 1 |
| LVDS | POGO 12 Pin x 1 |
| Expansion Slot | M.2 M Key x 1 | M.2 E Key x 1 | M.2 B Key x 1 | PCIe 3.0[x16] Slot x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | SIM (Optional) |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 244 x 244 |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
