ITL-ADLSI9-A10-NVA2-32512

Brand: AAEON [An ASUS Co.]
Categories:

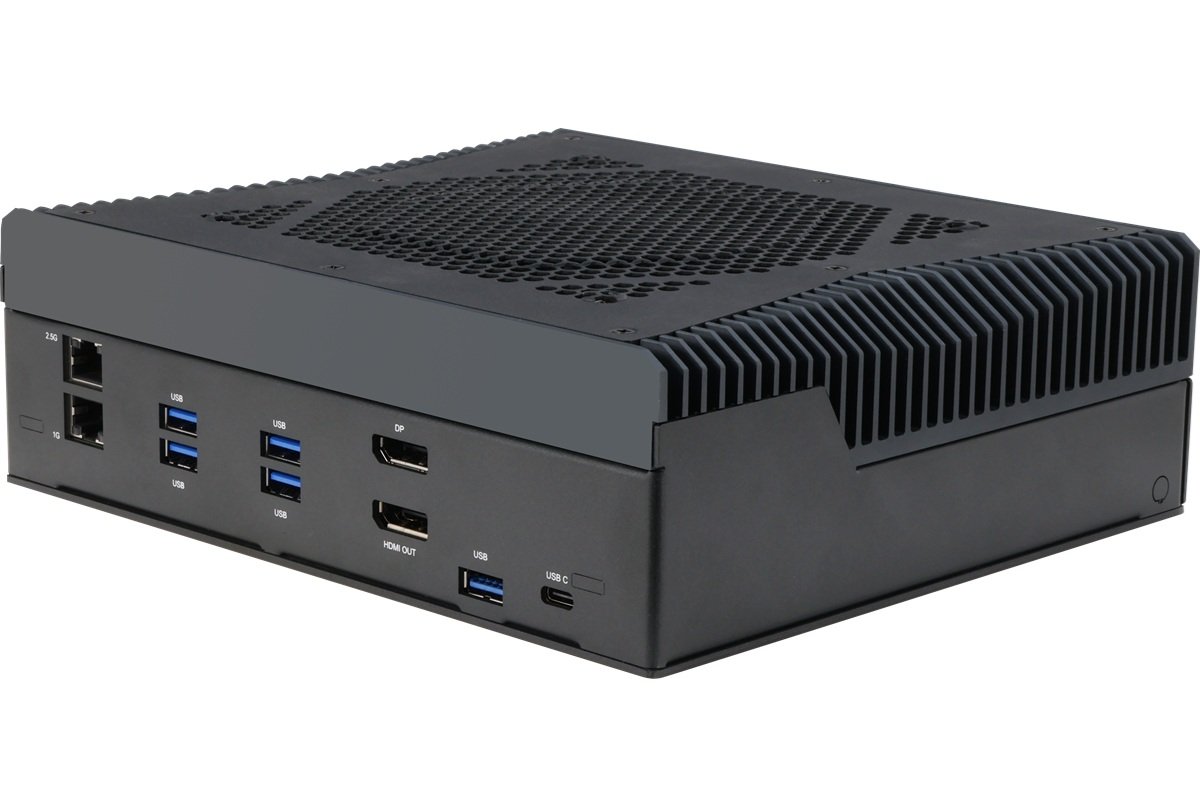

The Intelli i14 Edge, powered by an Intel Core i9 (14900T) processor and an NVIDIA RTX MXM GPU (with 5,888 CUDA Cores), is the ultimate compact powerhouse designed for autonomous systems, LiDAR fusion, and real-time AI workloads.

It stands out with its fanless, dust-resistant design, measuring only 205x190x70mm. Tested in compliance with the IEC EN60068-2-64 vibration standards, it offers uninterrupted stability in demanding industrial environments such as defense, automotive ADAS, and robotics.

The integration of the UP Edge AI Toolkit, support for dual NVMe storage, and DDR5 memory at 4800 MT/s maximize data processing speed. It is the ideal platform for running sensor data and multiple AI models in real-time.

With five USB 3.2 ports and dual LAN ports, it ensures seamless integration with camera, LiDAR, and IMU sensors. The MXM form factor offers flexible power options and a long product lifespan, adapting the device to all kinds of edge AI use cases.

Specifically designed for AMR (Autonomous Mobile Robots) and embedded workstations, the Intelli i14 Edge provides unique workload allocation, dynamically managing low-latency tasks like navigation alongside background parallel tasks such as recording sensor streams.


Features


Product Code ITL-ADLSI9-A10-NVA2-32512
AI Accelerator| GPU Nvidia M3A2000-VY1-A1
Cooling Fanless
Processor [CPU] Intel® Core™ i9-14900T
Processor [CPU] Family Intel® Raptor Lake Refresh (14th Gen)
RAM [System Memory] 32GB
SSD/HDD/mSATA/M.2 512GB
LAN/Ethernet 2.5GbE x 1
USB 3.2 (Type A) x 5 (Type C) x 1
Video Output Display Port x 2
Expansion Slot M.2 2230 E-key x 1 M.2 2280 M-key x 2
Power Consumption 300W
Supply Voltage DC 12V
Working temperature -20°C ~ 70°C
External Dimensions (mm) 8.07 x 7.48 x 2.76
Weight (kg) 3
Certificates CE | FCC Class A | RoHS Compliant, REACH
Supported Operating Systems Windows®10 | Linux | Operating system sold separately from license.
