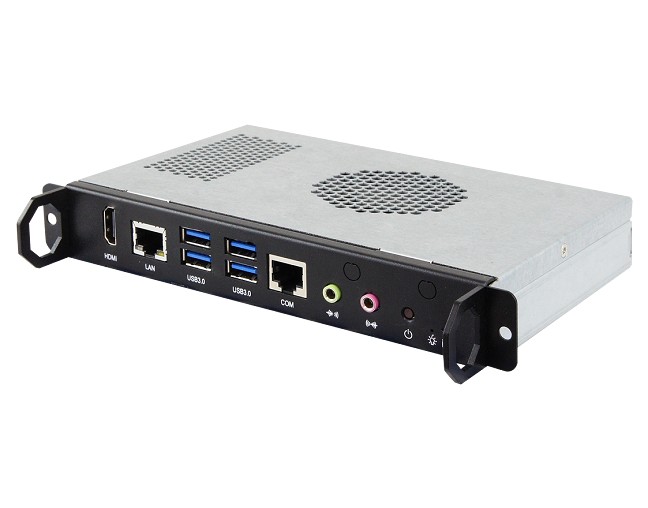

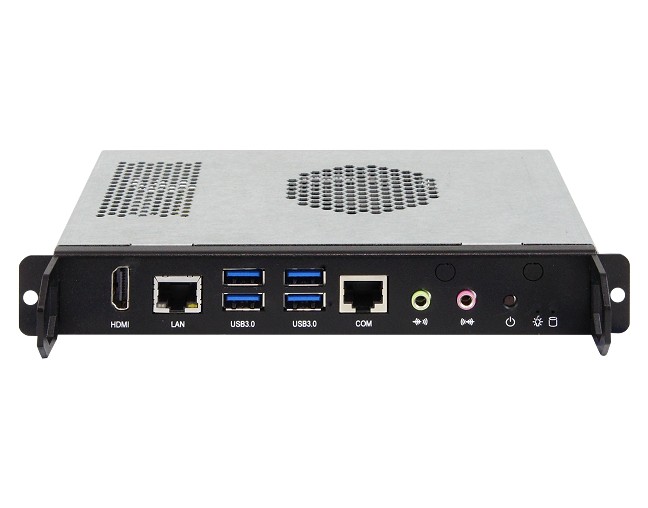

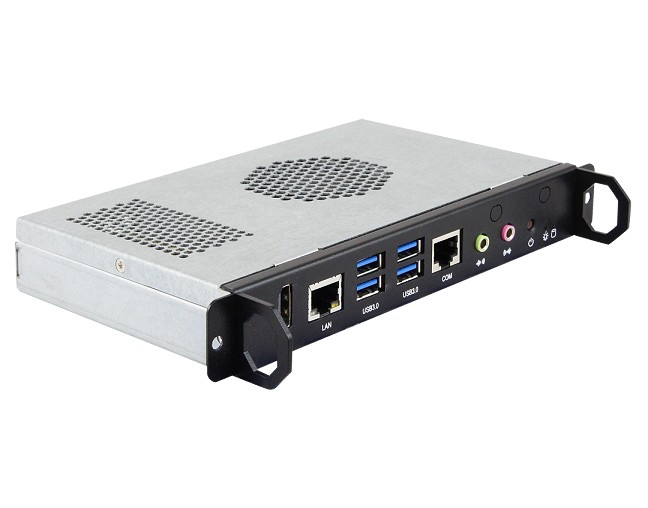

IOPS-602
Brand: IBASE
Categories:
IOPS-602 is a digital media player built upon the benefits and functionality of Intel®'s Open Extension Specification (OPS). The OPS standard enables wireless and cost-effective deployment for more efficient management and maintenance of media players.
The IOPS-602 OPS signage player is powered by 7th Generation Intel® Core™ QC/DC processors and runs both Windows 10 and Linux Ubuntu operating systems. Integrated into the processor for smooth content playback at up to 4K resolution
IBASE offers a comprehensive range of digital signage players, from entry-level low-power systems for one or two FHD displays, to high-end systems with advanced configurations, to hardware/software solutions for 4K/8K/12K multi-screen video walls.
Features
| Product Code | IOPS-602 |
| Processor [CPU] | Intel® Core™ i7-7600U 2 Core 2.80 GHz | BM : 3720 |
| Processor [CPU] Family | Intel® Core™ i7 7th Gen |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | 128 GB mSATA |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x4 |
| RS 232 Serial Port | x1 |
| Video Output | HDMI x 1 |
| Expansion Slot | M.2 B Key x 1 | Full Size Mini-PCIe x 1 |
| Mounting Type | Open Pluggable Specification |
| Supply Voltage | DC 12-19V |
| Working temperature | 0°C ~ 45°C |
| External Dimensions (mm) | 200 x 119 x 30 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
