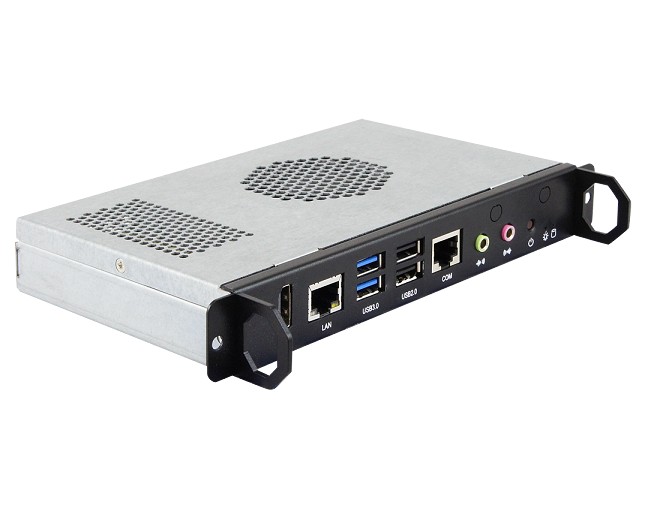

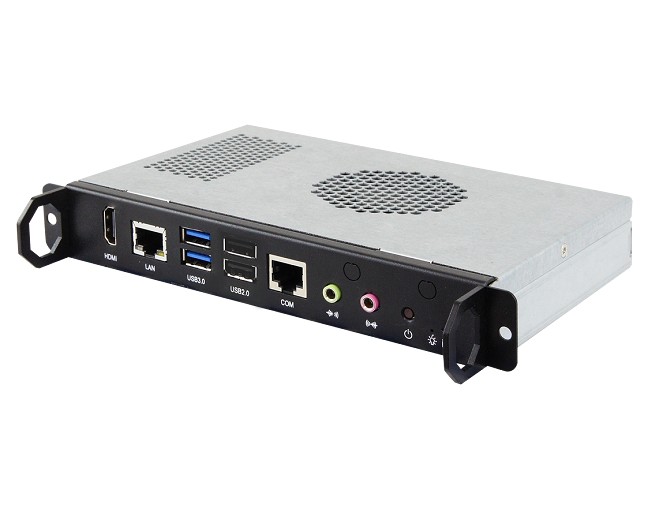

IOPS-302
Brand: IBASE
Categories:
iSMART – EuP/ErP for power saving, automatic scheduling and power sustainment
• Supports 3rd Generation AMD® Embedded R&G series APUs.
• 2x DDR4-2133 SO-DIMM, dual channel, Maximum 32 GB
• 1x HDMI
• 1x Line Out / 1x Microphone In
• 1x RJ45 for Gigabit LAN / 1x RJ45 for COM Port
• 2x USB 3.0 ports; 2x USB 2.0 Ports
• 1x M.2 E-Key (2230) for Wi-Fi or Bluetooth options
Features
| Product Code | IOPS-302 |
| Processor [CPU] | AMD® GX-224IJ 2 Core 2.40 / 2.80 GHz | BM : 1270 |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | 128 GB mSATA |
| LAN/Ethernet | GbE x 1 |
| USB 3.0 | x2 |
| USB 2.0 | x2 |
| RS 232 Serial Port | x1 |
| Video Output | HDMI x 1 |
| Expansion Slot | Full Size Mini-PCIe |

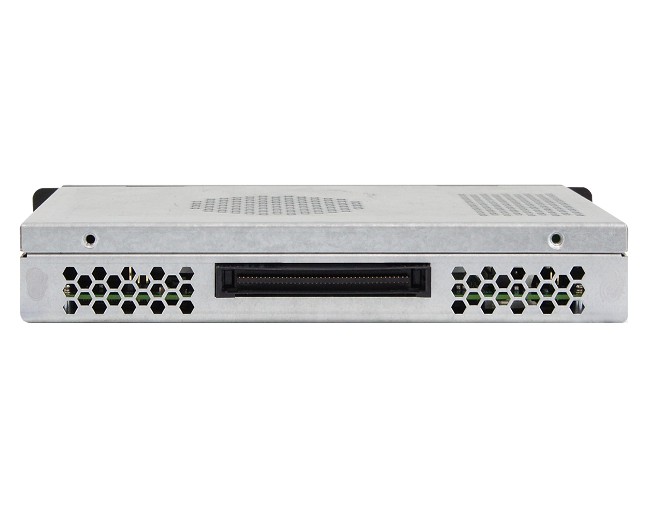

| Mounting Type | Open Pluggable Specification |
| Supply Voltage | DC 12-19V |
| Working temperature | 0°C ~ 40°C |
| External Dimensions (mm) | 200 x 119 x 30 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
