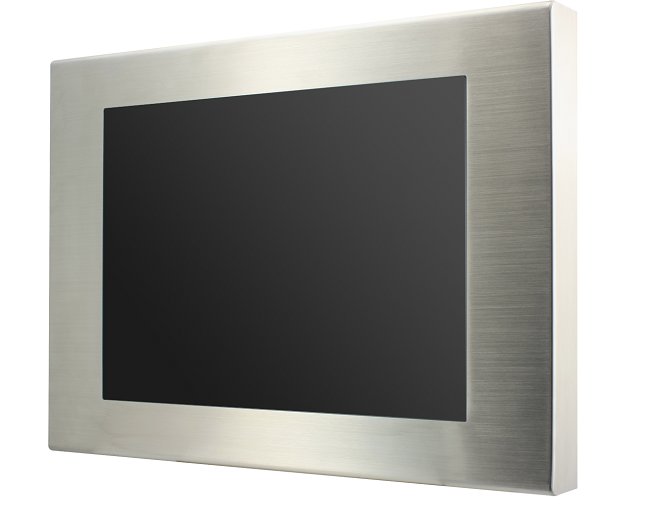

| Product Code |
INOSP-192-PC |
| Screen size |
19" TFT LCD |
| Resolution |
1280 x 1024 |
| Screen Format |
5 | 4 |
| Brightness |
1000 cd/m² |
| Contrast |
1000 | 1 |
| Viewing Angle |
170°(H) / 160°(V)
|
| Touch Type |
Projective Capacitive [P-CAP]
|
| Backlight Life (Min. Hours) |
50000
|
| Cooling |
Fanless
|
| Processor [CPU] |
Intel® Atom® E3845 4 Core 1.91 GHz | BM : 1130
|
| Processor [CPU] Family |
Intel® Atom®
|
| RAM [System Memory] |
Standard 4 GB DDR3L [Max 8 GB]
|
| SSD/HDD/mSATA/M.2 |
2.5" SATA x 1 | [Upgradeable]
|
| LAN/Ethernet |
GbE x 1 [M12]
|
| USB 3.0 |
Optional [M12]
|
| USB 2.0 |
x 1 [M12]
|
| RS 232 Serial Port |
x 1 [M12]
|
| RS 232/422/485 Serial Port |
x 1 [[M12]]
|
| Video Output |
x 0
|
| Mounting Type |
VESA 75 | Panel Mount | Stand | Mounting Unit Not Included.
|
| Supply Voltage |
DC 9-19V
|
| Working temperature |
0°C ~ 50°C
|
| External Dimensions (mm) |
470 x 390 x 62.5
|
| Body Material |
Aluminum
|
| IP Protection Class |
Front IP65
|
| Certificates |
CE | FCC | LVD
|
| Supported Operating Systems |
Windows®10 | Windows®8 | Linux | Operating system license sold separately.
|
