INOSP-151-RE
Brand: IBASE
Categories:

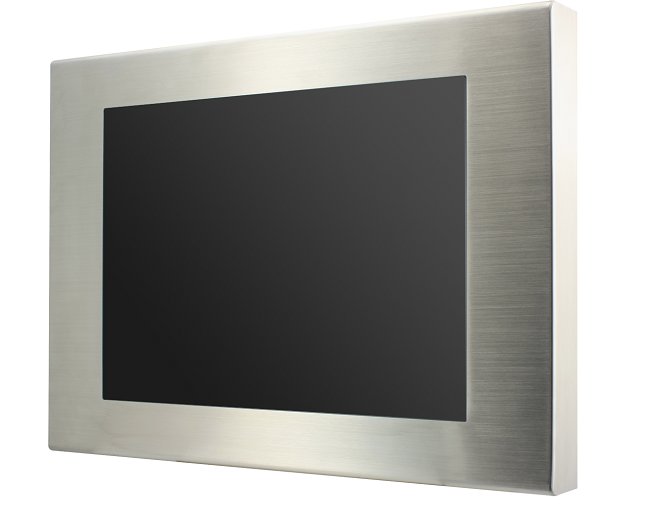

INOSP-151-RE is a 15" stainless steel panel computer that adopts dual Core 1.86GHz Intel® Atom™ Processor D2550 and Intel® NM10 chipset, providing high processing performance and low power consumption.
The fanless INOSP-151-RE operates quietly and reliably in harsh environments, comes with up to 4GB DDR3 1033/1066MHz system memory and two SODIMM slots to accommodate one 2.5-inch SATA HDD and an external CFast slot for data storage. M2M state

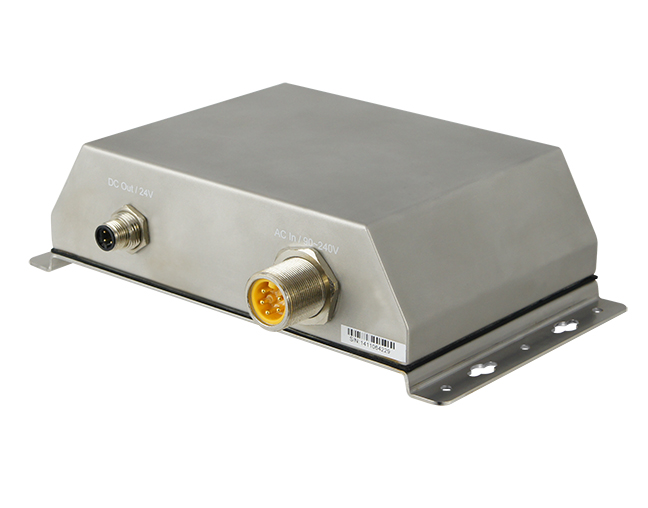

The INOSP-151-RE has been proven to work well in temperature environments from 0 to 50 degrees Celsius and supports a wide 12V~36V DC power input range with an optional 24V DC IP56 stainless steel power adapter, making it ideal for food use.
Features
| Product Code | INOSP-151-RE |
| Screen size | 15" TFT LCD |
| Resolution | 1024 x 768 |
| Screen Format | 4 | 3 |
| Brightness | 500 cd/m² |
| Contrast | 1000 | 1 |
| Viewing Angle | 160°(H) / 160°(V) |
| Touch Type | Resistive |
| Backlight Life (Min. Hours) | 50000 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Atom™ D2550 2 Core 1.86 GHz BM : 730 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | 4 GB Standard DDR4L |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 1 | [Upgradeable] |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x1 |
| USB 2.0 | x1 |
| Digital I/O | 2DI / 2DO |
| Video Output | x 0 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Mounting Type | VESA 75 | Panel Mount | Stand | Mounting Unit Not Included. |
| Supply Voltage | DC 12-36V |
| Working temperature | 0°C ~ 50°C |
| External Dimensions (mm) | 425 x 330 x 60 |
| Body Material | Aluminum |
| IP Protection Class | Front IP65 |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®8 | Linux | Operating system license sold separately. |
