IMBM-H110A-A11-210
Brand: AAEON [An ASUS Co.]
Categories:

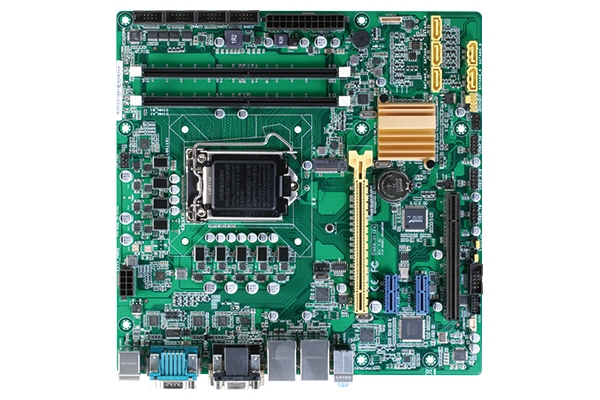

IMBM-H110A-A11-210 is a multitasking motherboard specially designed for ATM machines and kiosks.
It provides high performance and reliability with Intel® Core™ i7 | i5 | i3 processors.
It offers wide connectivity options with 10 USB ports and 6 x RS-232 serial ports.
It provides the opportunity to increase storage capacity with M.2 and SATA3 slots.
It offers high resolution support with HDMI and VGA outputs and operates safely in the temperature range of 0°C ~ 60°C.
Features
| Product Code | IMBM-H110A-A11-210 |
| Form Factor | Micro-ATX |
| Card Size (mm) | 244 x 244 |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key 2242 x 1 | SATA3x5 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x4 |
| USB 2.0 | x6 |
| RS 232 Serial Port | x5 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | HDMI x 2 + VGA x 1 + DVI-D x 1 |
| Expansion Slot | PCIe [x16] x 1 | PCIe [x1] x 2 | PCIe [x16] x 1 | PCIe [x1] x 2 | PCI x 1 |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
