IMBA-Q170A-A11-2P4-210
Brand: AAEON [An ASUS Co.]
Categories:

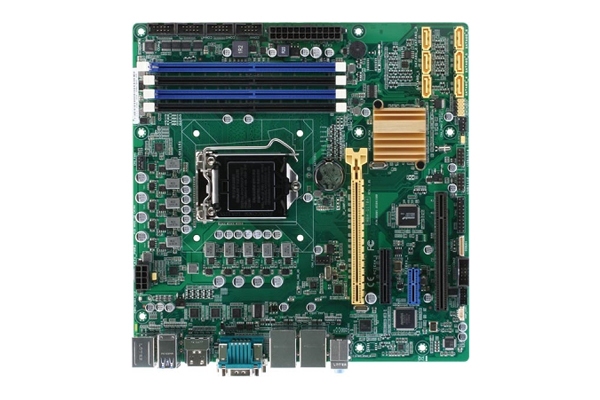

IMBA-Q170A-A11-2P4-210 is a Micro ATX motherboard that supports 6th/7th Generation Intel® Core™ processors.
High-performance systems can be created with Intel® Core™ i7, i5, i3 processor options.
It offers memory capacity up to 64 GB with DDR4 RAM support.
It provides rich expansion options with PCIe slots, SATA3 connections and USB 3.2 ports.
It can operate in the temperature range of 0°C ~ 60°C and offers multiple display capabilities with HDMI, VGA, DVI-D video outputs.
Features
| Product Code | IMBA-Q170A-A11-2P4-210 |
| Form Factor | ATX |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 3 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x10 |
| USB 2.0 | x3 |
| RS 232 Serial Port | x5 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | HDMI x 2 + VGA x 1 |
| Expansion Slot | PCIe [x16] x 1 | PCIe [x4] x 2 | PCIe [x16] x 1 | PCIe [x4] x 2 | PCIx3 |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®7 | Operating system sold separately from license. |
