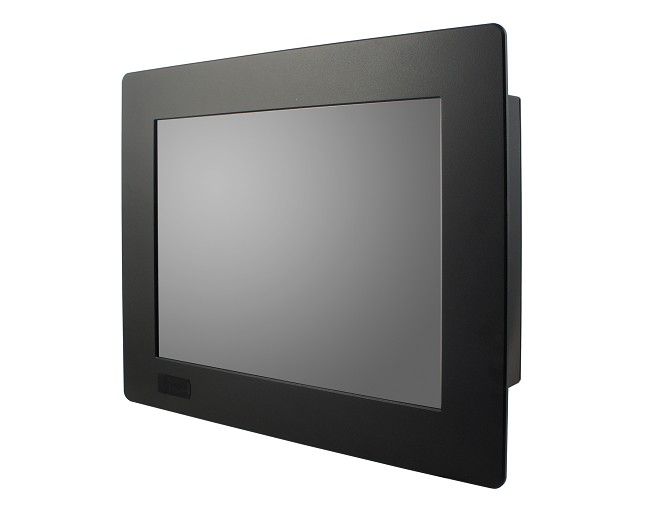

ICC1503-DC-RE
Brand: IBASE
Categories:
Expandable Affordable Industrial Panel PC with Intel® Celeron® J1900 processor ● Cost-effective ● Low power consumption ● PCIe [x1] and PCI Expansion ● Front-access USB 2.0 Port
Features
| Product Code | ICC1503-DC-RE |
| Screen size | 15" TFT LCD |
| Resolution | 1024 x 768 |
| Screen Format | 4 | 3 |
| Brightness | 420 cd/m² |
| Contrast | 1000 | 1 |
| Viewing Angle | 160°(H) / 160°(V) |
| Touch Type | Resistive |
| Backlight Life (Min. Hours) | 30000 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Celeron® J1900 4 Core 2.00 GHz | BM : 1150 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | Standard 4 GB DDR3L [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 1 | [Upgradeable] |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x1 |
| USB 2.0 | x3 |
| RS 232 Serial Port | x1 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | VGA x 1 + DVI-D x 1 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Mounting Type | VESA 75 | Panel Mount | Stand | Mounting Unit Not Included. |
| Supply Voltage | DC 9-30 V |
| Working temperature | 0°C ~ 50°C |
| External Dimensions (mm) | 410 x 335 x 75 |
| Body Material | Aluminum |
| IP Protection Class | Front IP65 |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®8 | Linux | Operating system license sold separately. |
