GENESYSM-TGU6-A10-0003
Brand: AAEON [An ASUS Co.]
Categories: IoT Gateway

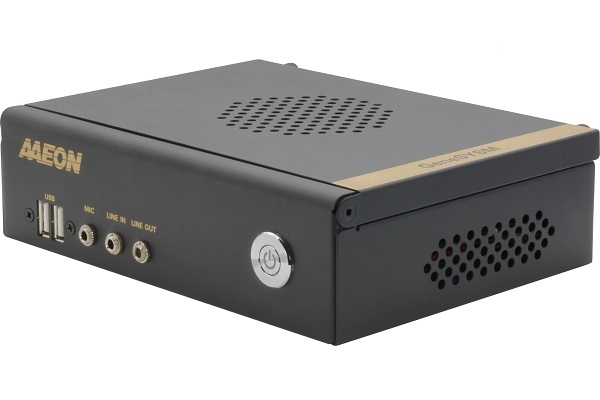

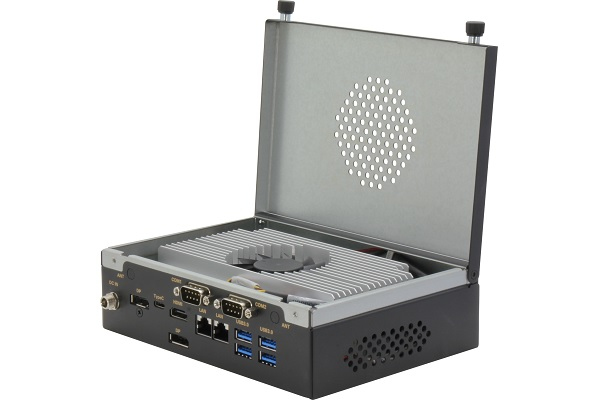

GENESYSM-TGU6-A10-0003 provides high performance with 3.5" SUBCmpact Motherboard System with 11th Generation Intel® Core™ i7/i5/i3/Celeron CPU.
It offers powerful and efficient processing power with Intel® Core™ i3-1115G4 2 Core 3.00 / 4.10 GHz processor.
M.2 M Key x 1 | SATA x 1 provides flexibility with storage options.
It offers expansion with USB 3.2 x 4 and RS-232/422/485 x 2 ports.
It can operate in the temperature range of -20°C ~ 50°C with DC 9-36V supply voltage.
Features
| Product Code | GENESYSM-TGU6-A10-0003 |
| Form Factor | 3.5" Subcompact Board |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i3-1115G4 2 Core 3.00 / 4.10 GHz | BM : 6100 |
| Processor [CPU] Family | Intel® Core™ i3 11th Gen |
| RAM [System Memory] | DDR4 [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 | SATA x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | x4 |
| USB 2.0 | x2 |
| USB 3.2 | x1 |
| RS 232/422/485 Serial Port | x2 |
| Video Output | HDMI x 1 + DP x 2 |
| Expansion Slot | M.2 M Key x 1 | M.2 E Key x 1 |
| TPM | TPM 2.0 |
| Supply Voltage | DC 9-36V |
| Working temperature | 0°C ~ 50°C |
| External Dimensions (mm) | 178 x 134.1 x 50 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
