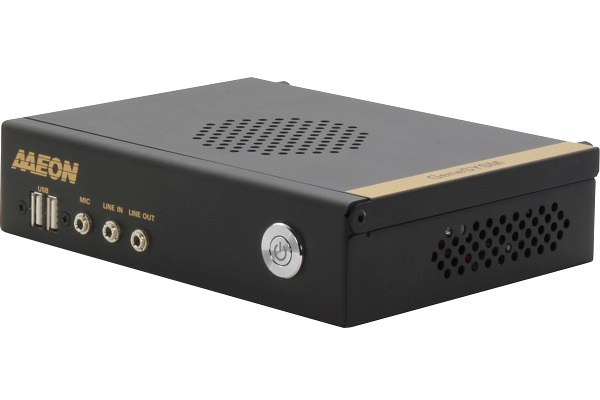

GENESYSM-ADP6-A10-0003
Brand: AAEON [An ASUS Co.]
Categories: IoT Gateway
GENESYSM-ADP6-A10-0003, 3.5" SUBCmpact Motherboard System with 12th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC.
Delivers up to 64GB of DDR5 4800MHz system memory via dual-channel SODIMM.
Features include 12th Generation Intel® Core™ i7/i5/i3/Celeron processors and provide high data processing capacity.

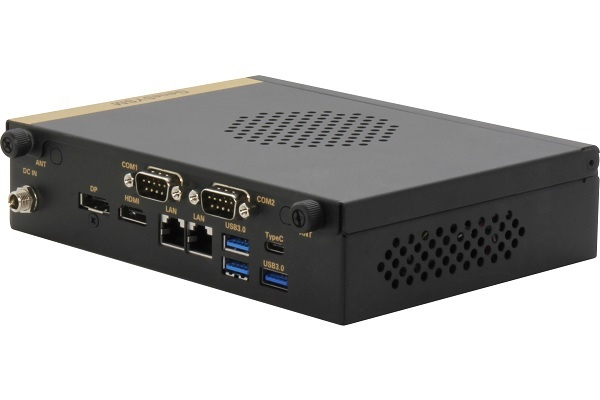

It provides rich connectivity options with HDMI + DP video output, USB 3.2 x 3, USB Type-C x 1 and RS-232/422/485 x 2 ports.
It provides safe and flexible operation with DC 9-36V power input and a temperature range of 0°C ~ 60°C.
Features
| Product Code | GENESYSM-ADP6-A10-0003 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i3-1220PE 8 Core 3.10 GHz | BM : 16200 |
| Processor [CPU] Family | Intel® Core™ i3 12th Gen |
| RAM [System Memory] | DDR5 [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | SATA x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | x3 |
| USB 2.0 | x2 |
| USB Type-C | x1 |
| RS 232/422/485 Serial Port | x2 |
| Video Output | HDMI x 1 + DP x 1 |
| Expansion Slot | M.2 M Key x 1 | M.2 B Key x 1 | M.2 E Key x 1 |
| SMBUS | x1 |
| TPM | TPM 2.0 |
| Supply Voltage | DC 9-36V |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 178 x 134.1 x 43 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
