GENESYSM-ADN6-A10-P002
Brand: AAEON [An ASUS Co.]
Categories: IoT Gateway

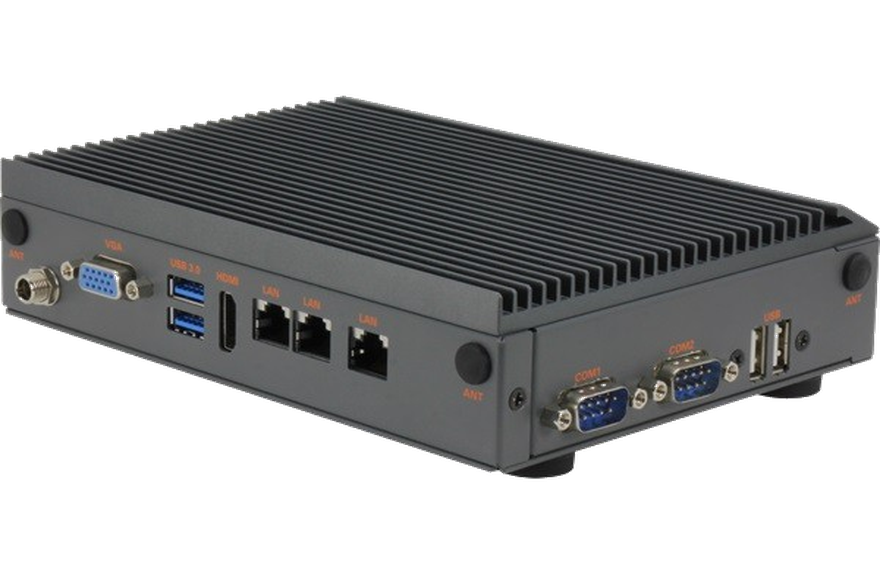

GENESYSM-ADN6-A10-P002, GENE System is designed with support for Intel® Atom® x7000E Series, Intel® Processor N Series, and Intel® Core™ i3-N305 processors.
Equipped with a DDR5 4800MHz SODIMM slot, the system supports up to 16GB of memory, ensuring efficient data processing.
The GENE System includes an array of connectivity options including three Intel® 2.5GbE ports, two USB 3.2 Gen2, four USB 2.0 ports and two RS-232/422/485 Serial Ports.
Designed to operate in a variety of conditions, the system has a wide DC input range of 9-36V.
It provides advanced performance with its Intel® Core™ i3-N305 processor and expansion options.
Features
| Product Code | GENESYSM-ADN6-A10-P002 |
| Form Factor | 3.5" Subcompact Board |
| Card Size (mm) | 178 x 134.1 x 43 |
| Processor [CPU] | Intel® Core™ i3-N305 8 Core 1.80 GHz | BM : 10080 |
| Processor [CPU] Family | Intel® Core™ i3 13th Gen |
| RAM [System Memory] | DDR5 [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | SATA x 1 |
| LAN/Ethernet | 2.5 GbE x 3 |
| USB 3.2 | x2 |
| USB 2.0 | x4 |
| Video Output | x 0 |
| Digital I/O | GPIO |
| Expansion Slot | M.2 3052 B-Key x 1, M.2 2230 E-Key x 1, MiniCard x 1 |
| SMBUS | x1 |
| TPM | TPM 2.0 |
| 4G - LTE | Optional |
| Supply Voltage | DC 12V |
| Working temperature | -10°C ~ 60°C |
| External Dimensions (mm) | 178 x 134.1 x 43 |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
