GENESYS-KBU6-A10-0003
Brand: AAEON [An ASUS Co.]
Categories: IoT Gateway
GENESYS-KBU6-A10-0003 provides high-performance industrial solutions with 7th Generation Intel® Core™ i7/i5/i3/Celeron® processors.
It provides faster data processing with DDR4 RAM support.

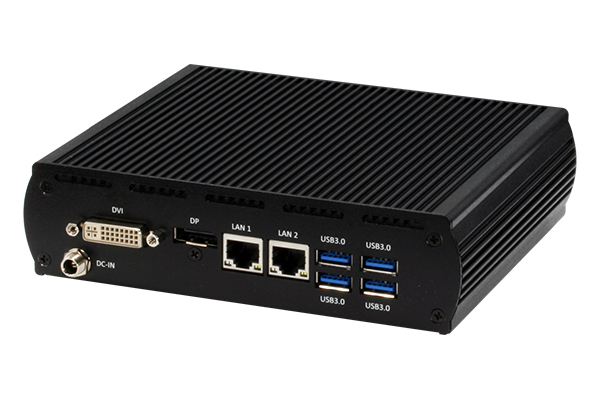

It offers extensive connectivity options with 2 x GbE LAN ports and DVI x 1, DP x 1 video output.
It offers a flexible structure with mSATA storage and expansion slot.
It is durable with DC 9-36 V supply voltage and -20°C ~ 50°C operating temperature range.
Features
| Product Code | GENESYS-KBU6-A10-0003 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i3-7100U 2 Core 2.40 GHz | BM : 2790 |
| Processor [CPU] Family | Intel® Core™ i3 7th Gen |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x2 |
| USB 2.0 | x2 |

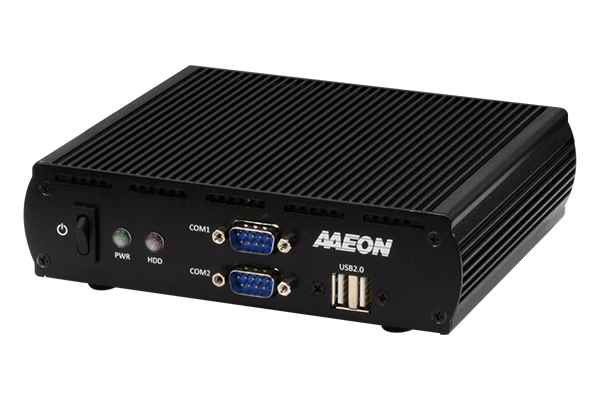

| RS 232 Serial Port | x1 |
| Video Output | DVI x 1 + DP x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | Half Size Mini-PCIe x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | SIM (Optional) |
| Supply Voltage | DC 9-36V |
| Working temperature | 0°C ~ 50°C |
| External Dimensions (mm) | 170 x 137 x 44.5 |
| Body Material | Aluminum |
| Certificates | CE |
