GENE-ASL6W2-A10-0003
Brand: AAEON [An ASUS Co.]
Categories:
GENE-ASL6W2-A10-0003 is a powerful and efficient motherboard with Intel® Atom® x7835RE processor.
It provides high data processing power with DDR5 RAM support.

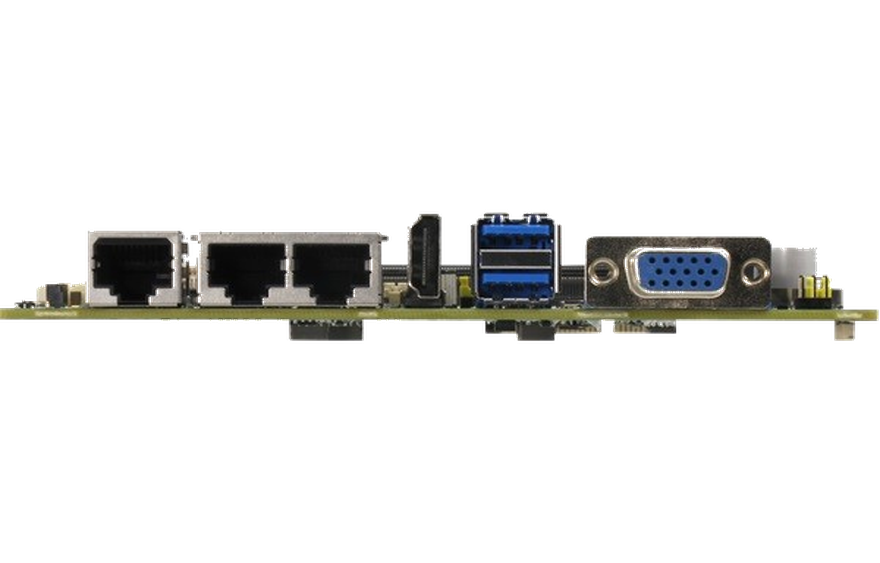

It offers extensive I/O options with 3 x 2.5GbE ports and various USB, VGA, HDMI ports.
It provides flexibility with various expansion slots and 4G/LTE modem support.
It can be used safely in harsh conditions with an operating temperature of -40°C ~ 85°C.
Features
| Product Code | GENE-ASL6W2-A10-0003 |
| Form Factor | deNEXT System |
| Card Size (mm) | 101.6 x 146 |
| Processor [CPU] | Intel® Atom® x7835RE 8 Core 3.60 GHz | BM : 8400 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | DDR5 [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | SATA x 1 |
| LAN/Ethernet | 2.5 GbE x 3 |
| USB 3.2 | x2 |
| USB 2.0 | x4 |
| Video Output | HDMI 1.4 x 1 + VGA x 1 |
| Digital I/O | GPIO |
| LVDS | x1 |
| Expansion Slot | M.2 3052 B-Key x 1 | M.2 2230 E-Key x 1 | MiniCard x 1 |
| SMBUS | x1 |
| TPM | TPM 2.0 |
| 4G - LTE | Optional |
| Supply Voltage | DC 12V |
| Working temperature | -40°C ~ 85°C |
| External Dimensions (mm) | 146 x 101.7 |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
