GENE-ADN5-A10-0002
Brand: AAEON [An ASUS Co.]
Categories:

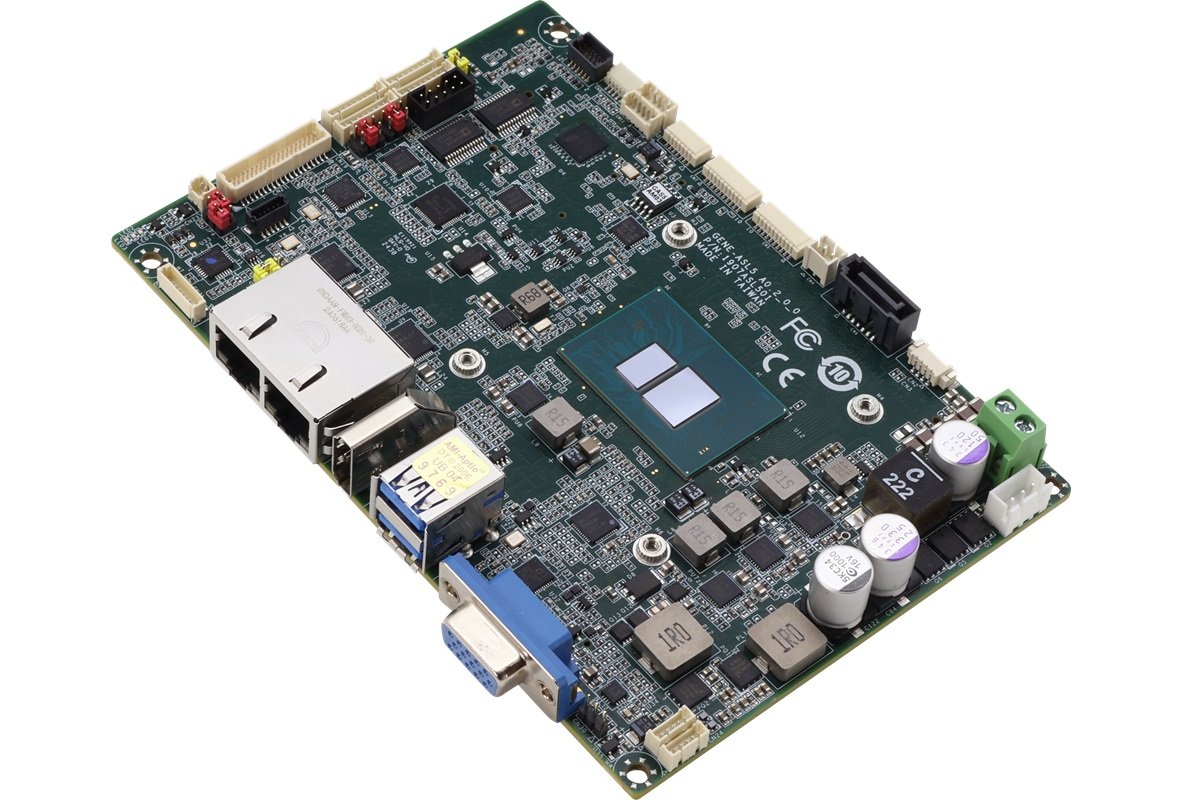

It is a space-saving embedded solution in the 3.5-inch SubCompact form factor, powered by the Intel® Processor N Series.
It supports high-speed data transfer with dual 2.5GbE LAN ports and triple display usage with LVDS, VGA, and HDMI outputs.
It supports up to 16GB of DDR5 4800MHz RAM capacity and offers flexible storage options with both SATA 6Gb/s and M.2 slots.
In addition to a full-size mPCIe/mSATA slot, it includes two different M.2 slots (B-Key and E-Key) for wireless communication (5G/4G) and Wi-Fi/BT modules.
It is suitable for industrial use, supporting a wide 9V∼36V DC voltage range, and features modern and industrial I/O ports such as USB 3.2 Gen 2 and 8-bit GPIO.
Features
| Product Code | GENE-ADN5-A10-0002 |
| Form Factor | 3.5" SubCompact Board |
| Cooling | Fan |
| Processor [CPU] | Intel® Core™ i3-N305 |
| Processor [CPU] Family | Intel® Core™ i3-N305 |
| RAM [System Memory] | DDR5 4800, SODIMM x 1, Maks. 16GB |
| SSD/HDD/mSATA/M.2 | SATA 6.0 Gb/s x 1 |
| LAN/Ethernet | 2.5GbE x 2 |
| USB 3.2 | x 2 |
| USB 2.0 | x 4 |
| RS 232 Serial Port | x 4 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI x 1 + VGA x 1 |
| Digital I/O | 8-bit |
| LVDS | x 1 |
| Audio Output | Line-out x 1, MIC-in x 1 |
| Expansion Slot | M.2 B-Key 3052 x 1M.2 E-Key 2230 x 1MiniCard x1 |
| Power Consumption | Tipik: 4.05A +12V, Maksimum: 5.05A +12V |
| Supply Voltage | 9V-36V |
| Working temperature | -40°C ~ 85°C |
| External Dimensions (mm) | 5.75 x 4 |
| Certificates | CE | FCC Class A |
| Supported Operating Systems | Windows® 10 | Windows® 11 | Linux Ubuntu 22.04 | Operating system license is sold separately. |
