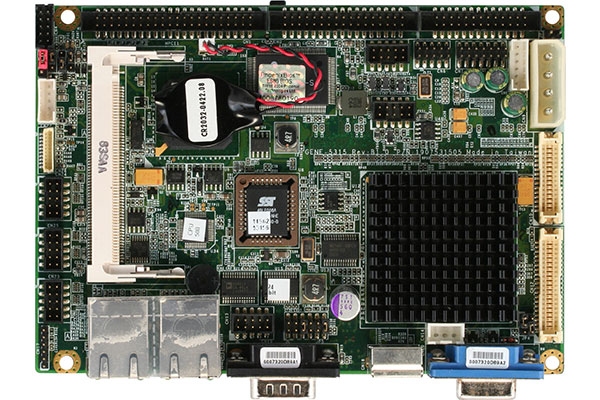

GENE-5315-B13-01
Brand: AAEON [An ASUS Co.]
Categories:
GENE-5315-B13-01 delivers powerful performance with AMD® Geode™ LX800 processor and DDR3 RAM support.
Provides integration with peripheral devices via 4 x USB 2.0 and DIO x 8.
It offers advanced display options with 24-bit LVDS and CRT video output.
Provides flexibility with EIDE and CFast storage options.
It provides stable operating performance in a wide temperature range of -20°C ~ 70°C.
Features
| Product Code | GENE-5315-B13-01 |
| Form Factor | 3.5" Subcompact Board |
| Card Size (mm) | 101.6 x 146 |
| Cooling | Fanless |
| Processor [CPU] | AMD® GEODE™ LX800 2 Core 0.50 GHz | BM : 252 |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | DDR3 |
| SSD/HDD/mSATA/M.2 | EIDE x 1 | CFast x 1 |
| LAN/Ethernet | FE x 2 |
| USB 2.0 | x4 |
| RS 232 Serial Port | x4 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | LVDS x 1 + CRT x 1 |
| Digital I/O | DIOx 8 |
| LVDS | 18 bit 1CH x 1 |
| Expansion Slot | Mini-PCI x 1 |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®XP | Operating system sold separately from license. |
