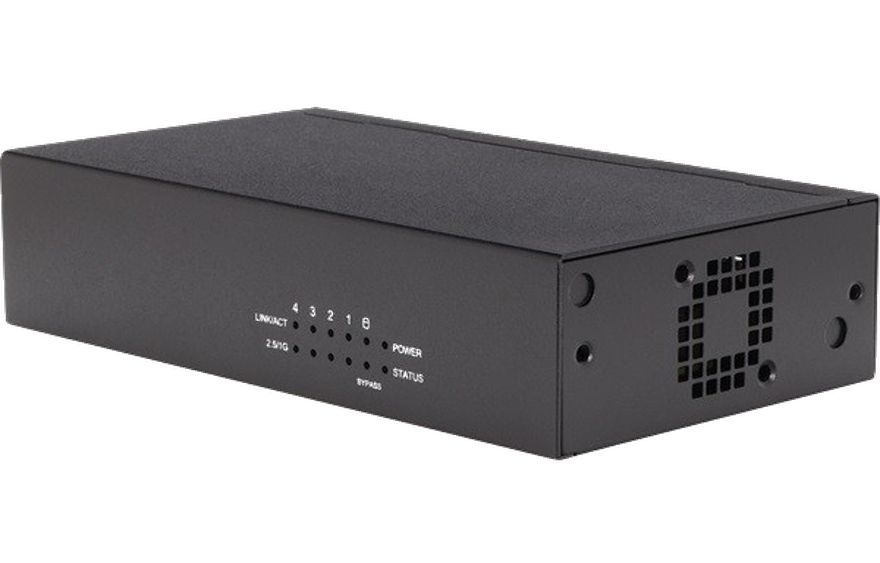

FWS-2290-E4-A10-000
Brand: AAEON [An ASUS Co.]
Categories:
FWS-2290-E4-A10-000 is a desktop network appliance optimized for high-speed connectivity and security.
It offers reliable network management with its Intel® Processor N97 4 Core 3.60 GHz processor.
Provides high-speed wired connection with 4 x 2.5GbE LAN ports.
It offers scalable solutions with 32 GB eMMC storage, SATA3 and M.2 expansion options.
It operates stably in the temperature range of 0°C ~ 40°C and is compatible with Windows 10 and Linux operating systems.
Features
| Product Code | FWS-2290-E4-A10-000 |
| Processor [CPU] | Intel® N97 4 Core 3.60 / 3.60 GHz | BM : 5930 |
| Processor [CPU] Family | Intel® Processor N® |
| RAM [System Memory] | 4 GB Onboard LPDDR5 |
| SSD/HDD/mSATA/M.2 | 32G eMMC | SATA3 port x 1 | 2.5”HDDx1 |
| Intel®LAN/Ethernet Ethernet Controller I226-V, 2.5GbE x 4 | 2.5GbE x 4 Intel® i226-V |
| USB 3.2 | x1 |
| USB 2.0 | x1 |
| Video Output | Optional |
| Expansion Slot | M.2 B key 3052 Socket x1M.2 E key 2230 Socket x1 |
| Mounting Type | Desktop |
| Supply Voltage | DC 12V Lockable |
| Working temperature | 0°C ~ 40°C |
| External Dimensions (mm) | 165 x 92 x 40 |
