FWA6706R
Brand: IBASE
Categories:

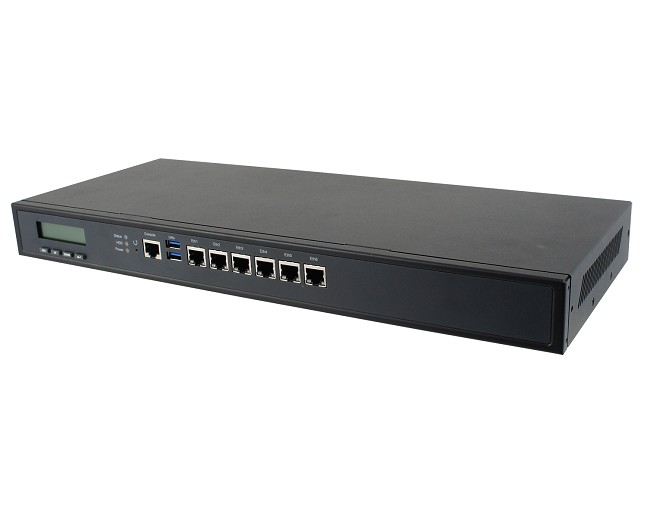

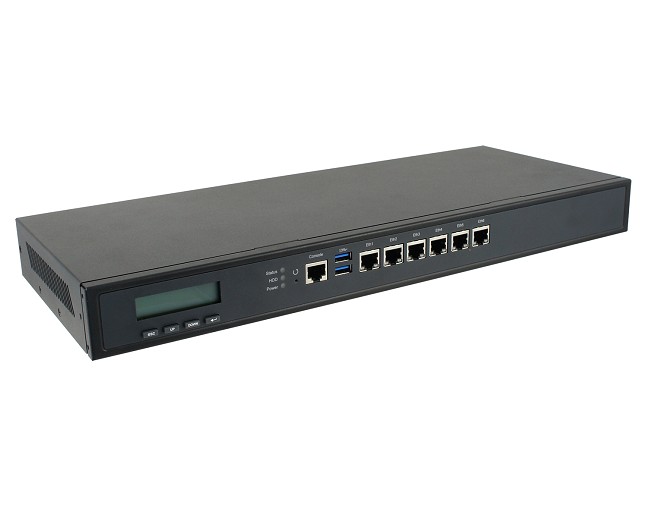

The FWA6706R is an entry-level network device in a 1U rackmount form factor with a smart fan solution. It enables fast and stable deployment in network environments for small and medium-sized businesses. Both models support 6x GbE ports and a pair of advanced LAN bypass functions that ensure uninterrupted operation of the serial network and prevent network node failure in the event of a power failure. Measuring 438 (W) x 180 (D) x 44 mm (H), the FWA6706R is built with a full-range 65 W open-frame power supply and a programmable LCM display.
Features
| Product Code | FWA6706R |
| Processor [CPU] | Intel® Celeron® N3350 2 Core 1.10 / 2.40 GHz | BM : 1107 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 1 | CFast x 1 |
| LAN/Ethernet | GbE x 6 |
| USB 3.0 | x2 |
| Video Output | VGA x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | PCIe [x1] x 1 | PCIe [x1] x 1 |
| Working temperature | 0°C ~ 40°C |
| External Dimensions (mm) | 439 x 180 x 44 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
