EPIC-KBS7-A11-00A1
Brand: AAEON [An ASUS Co.]
Categories:

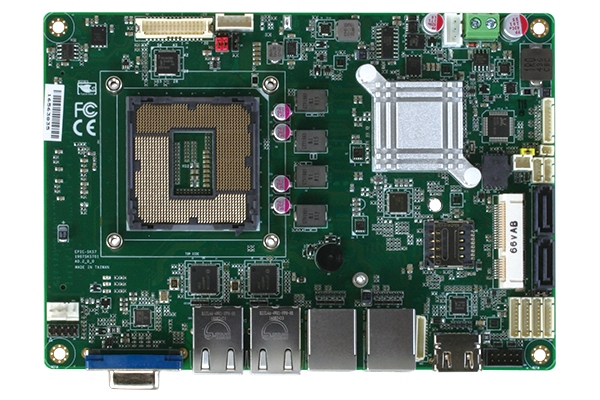

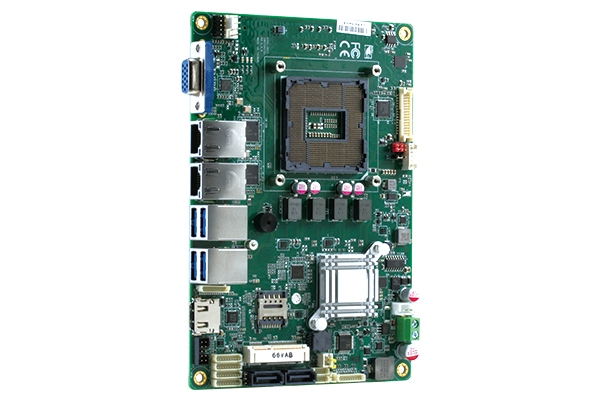

EPIC-KBS7-A11-00A1 is a customizable industrial motherboard that supports Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors.
It offers flexible installation and integration with its 4" EPIC form factor.
2 x GbE LAN, 2 x USB 3.2, 4 x USB 2.0, RS-232 x 3, RS-232/422/485 x 1 serial port connections are available.
Provides multi-screen support with HDMI and VGA video outputs.
It has an operating temperature of 0°C ~ 60°C and is compatible with Windows 10 and Linux Ubuntu operating systems.
Features
| Product Code | EPIC-KBS7-A11-00A1 |
| Form Factor | 4" EPIC |
| Card Size (mm) | 115 x 165 |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | DDR4 [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | SATA x 2 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x2 |
| USB 2.0 | x4 |
| RS 232 Serial Port | x3 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | HDMI x 1 + VGA x 1 |
| Digital I/O | GPIO 8 Bit |
| Expansion Slot | mSATA x 1 |
| Supply Voltage | DC 9-19V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux Ubuntu 21.04 | Operating system sold separately from license. |
