EMB-APL3-A11-4200-F1-LV
Brand: AAEON [An ASUS Co.]
Categories:

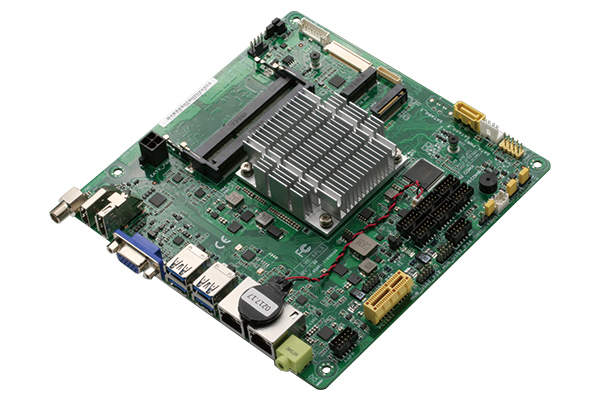

EMB-APL3-A11-4200-F1-LV is a powerful and energy efficient motherboard with Intel® Pentium® N4200 4 Core 1.10 / 2.40 GHz processor.
It offers a compact and flexible installation thanks to its Mini-ITX form factor.

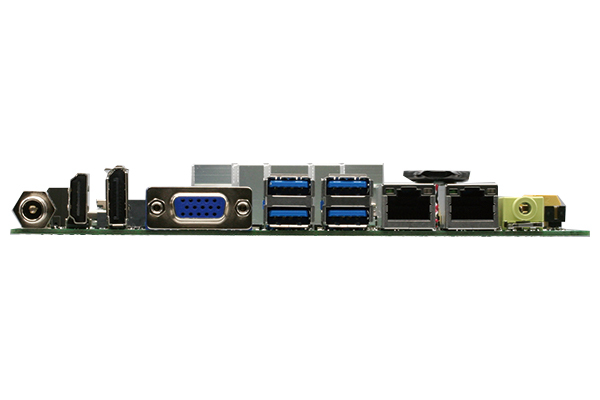

It provides easy integration with industrial systems with 5 x USB 3.0, 2 x USB 2.0, 5 x RS-232, 1 x RS-232/422/485 serial port.
It is suitable for multi-screen use with HDMI, VGA and LVDS support.
It supports Windows and Linux operating systems with DC 12V supply voltage, -20°C ~ 60°C operating temperature.
Features
| Product Code | EMB-APL3-A11-4200-F1-LV |
| Form Factor | Mini-ITX |
| Card Size (mm) | 170 x 170 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Pentium® N4200 4 Core 1.10 / 2.40 GHz | BM : 2150 |
| Processor [CPU] Family | Intel® Pentium® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x5 |
| USB 2.0 | x2 |
| RS 232 Serial Port | x5 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | HDMI x 1 + VGA x 1 + LVDS x 3 |
| LVDS | 18/24 bit 2CH x 1 |
| Expansion Slot | PCIe 2.0 [x1] x 1 | M.2 M Key x 1 | M.2 E Key x 1 |
| Supply Voltage | DC 12V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
