COM-TGUC6-A10-0006
Brand: AAEON [An ASUS Co.]
Categories:

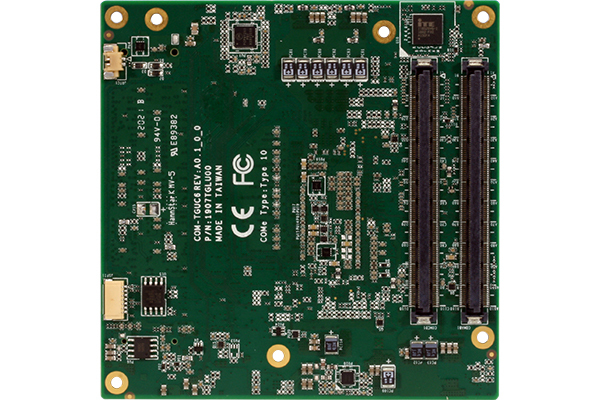

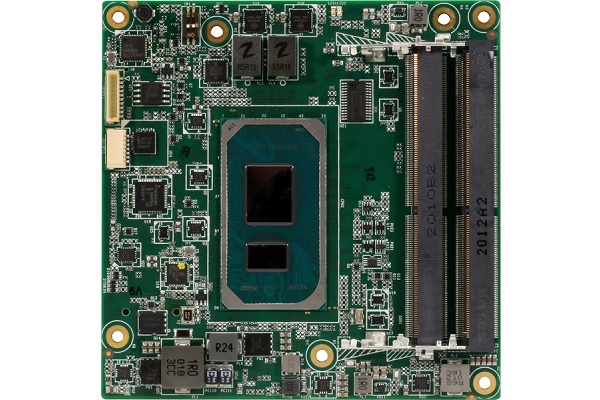

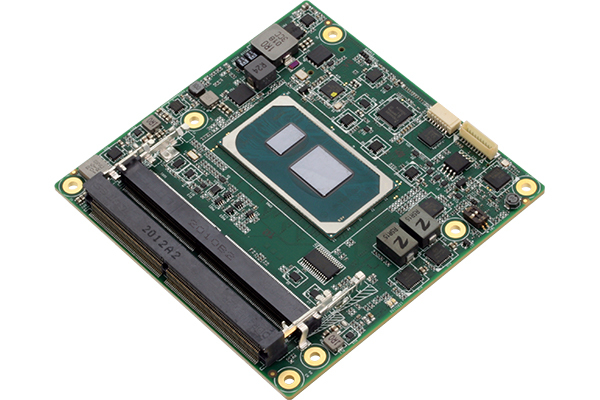

COM-TGUC6-A10-0006 is a COM Express Compact Type 6 industrial motherboard optimized for industrial and automation systems.
It delivers a balanced and powerful performance with its Intel® Core™ i5-1145GRE 4 Core 1.50 GHz processor.
It has large storage capacity with DDR4 [Max 32 GB] RAM support and SATA3 x 2 storage options.
It offers extensive connectivity options with GbE x 1 LAN port, USB 3.2 x 4, USB 2.0 x 8, VGA x 1, LVDS x 1, DDI x 3 video output.
It is compatible with Windows 10 and Linux Ubuntu 20.04 operating systems with DC 12V AT/ATX supply voltage, 0°C ~ 60°C operating temperature and CE certification.
Features
| Product Code | COM-TGUC6-A10-0006 |
| Form Factor | COM Express Type 6 |
| Card Size (mm) | 95 x 95 |
| Processor [CPU] | Intel® Core™ i5-1145GRE 4 Core 1.50 / 4.1 GHz | BM : 9420 |
| Processor [CPU] Family | Intel® Core™ i5 11th Gen |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 x 2 |
| LAN/Ethernet | GbE x 1 |
| USB 3.2 | x4 |
| USB 2.0 | x8 |
| UART | (Tx /Rx) x 2 |
| Video Output | VGA x 1 + LVDS x 1 + DDI x 3 |
| LVDS | 18/24 bit 2CH x 1 |
| Expansion Slot | PCIe [x1] x 5 | PCIe [x4] x 1 | PCIe [x1] x 5 | PCIe [x4] x 1 |
| SMBUS | x1 |
| TPM | TPM 2.0 |
| 4G - LTE | SIM (Optional) |
| Supply Voltage | DC 12V AT/ATX |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
